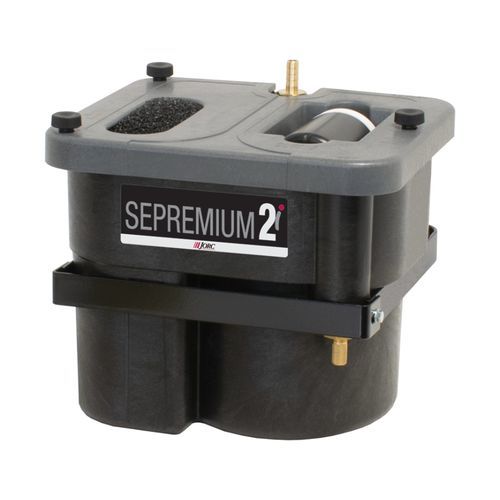

Liquid/liquid separator SEPREMIUM 2i

coalescingfor air compressorscompact

Overview
Serviceable oil–water separator designed for ultra-compact applications. Ideal for small repair shops, light-duty production areas and standalone compressor stations. Compressed air flow capacity up to 2 m³/min (70 CFM). Provides efficient multi-stage filtration with advanced JORC green element filtration technology. Serviceable design with easily accessible filter elements enables quick, tool-free routine maintenance. Cost-effective solution for low-volume condensate handling while supporting environmental compliance and simplified servicing.

Commercial benefits

• Suitable for compressor capacities up to 2 m³/min.
• Use of high-quality filtration materials.
• Effective separation of mineral oil, synthetic oil and stable condensate emulsions.
• Brass hose connectors for quick and secure installation.
• Housing and lids made of up to 100% recycled plastic.
• Good value for low-flow condensate management.

Technical advantages

• Maximum compressor capacity: 2 m³/min (70 CFM).
• Test valve and sample bottle included for output testing and ppm indication.
• Compatible with all JORC drain types (timer-controlled and zero air loss).
• Customer-specific finishing options available.
• Lighter and easier replacement of elements for fast servicing.

Specifications
Max. Compressor Capacity: 2 m³/min (70 CFM)
Max. Oil Absorption Volume: 2 liters
Filter Elements: 1
Activated Carbon Elements: 1
Inlet connection: G ½" (10 mm hose adapter)
Outlet connection: G ½" (14 mm hose adapter)
Test Valve & Sample Bottle: Yes
Residual Oil Content: <5 ppm
Housing Material: PPC
Housing Color: Black
Lid Color: Grey
Test Kit Included: Yes
Inlet/Outlet Hose Adapters: Included (brass hose connectors)
DIBt Certification: Yes
Suitable for Mineral/Synthetic Oils: Yes
Suitable for Stable Emulsions/Polyglycol: On request
Space Requirement (mm): 240 x 270 x 249

Features / technical specifications

• Model: SEPREMIUM 2i
• Compressor capacity: 2 m³/min (70 CFM)
• Max. oil absorption volume: 2 liters
• Filter elements: 1
• Activated carbon elements: 1
• Connections: Inlet G ½" (10 mm), Outlet G ½" (14 mm)
• Test valve & sample bottle: Included (for ppm indication)
• Residual oil content: <5 ppm
• Housing: PPC (housing and lids made of up to 100% recycled plastic)
• Housing color: Black; Lid color: Grey
• Test kit included
• Inlet/outlet hose adapters included (brass hose connectors)
• DIBt certified
• Suitable for mineral and synthetic oils (stable emulsions/Polyglycol on request)
• Space requirement (mm): 240 x 270 x 249
