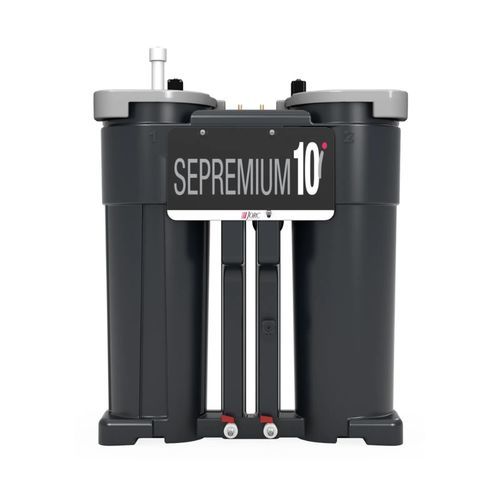

Liquid/liquid separator SEPREMIUM 10i

coalescingcompactplastic

Product type

• Oil–water separator for midsized manufacturing plants, automotive service centers and facilities with moderate compressed air demand.
• Handles air flow up to 10 m³/min (354 CFM).
• Advanced adsorption stages with a final activated carbon polishing stage to achieve residual oil content below 5 ppm.

Overview

• Service valves enable sectional draining to simplify routine maintenance and reduce downtime.
• Visual indicator for filter element life to help plan replacements.
• Overflow indicator for added operational safety.
• Test valve and sample bottle provided for output testing and ppm verification.
• Multiple condensate inlets and brass hose connectors for straightforward installation.
• Compatible with all JORC drain types (timer-controlled and zero air loss).

Commercial benefits

• Suitable for compressor capacities up to 10 m³/min.
• Equipped with a new JORC green filtration element to improve oil capture.
• Effective separation of mineral oil, synthetic oil and stable condensate emulsions.
• Service valves allow draining of individual towers during maintenance.
• Brass hose connectors enable quick and secure installation.
• Compact footprint and supplied test kit facilitate installation planning.

Technical advantages

• Maximum compressor capacity: 10 m³/min (354 CFM).
• Visual element life indication for maintenance scheduling.
• Lighter, easy-to-replace filter elements.
• Sectional draining options during servicing to avoid full system shutdown.
• Multiple condensate inlets for flexible piping layouts.
• Integrated overflow indicator.
• Test valve & sample bottle for output checking and ppm indication.
• Customer-specific finishing options available.
• Small footprint for space-constrained installations.

Specification table
Max. Compressor Capacity: 10 m³/min (354 CFM)
Max. Oil Absorption Volume: 10 liters
Filter Elements: 2
Activated Carbon Elements: 1
Inlet connection: G ½" (10 mm hose adapter)
Outlet connection: G 1" (26 mm hose adapter)
Test Valve & Sample Bottle: Yes
Residual Oil Content: <5 ppm
Housing Material: PE
Housing Color: Black
Lid Color: Grey
Test Kit Included: Yes
Inlet/Outlet Hose Adapters: Included
DIBt Certification: Yes
Suitable for Mineral/Synthetic Oils: Yes
Suitable for Stable Emulsions/Polyglycol: On request
Space Requirement (W x D x H): 260 x 670 x 793 mm

Characteristics / technical specifications

• Model: SEPREMIUM 10i
• Maximum compressor capacity: 10 m³/min (354 CFM)
• Residual oil content after treatment: <5 ppm
• Max. oil absorption volume: 10 liters
• Filter elements: 2
• Activated carbon elements: 1
• Inlet connection: G ½" (10 mm hose adapter)
• Outlet connection: G 1" (26 mm hose adapter)
• Housing material: PE; Housing color: Black; Lid color: Grey
• Test valve & sample bottle: included (for output testing and ppm indication)
• Test kit: included
• DIBt certification: Yes
• Space requirement (W x D x H): 260 x 670 x 793 mm
