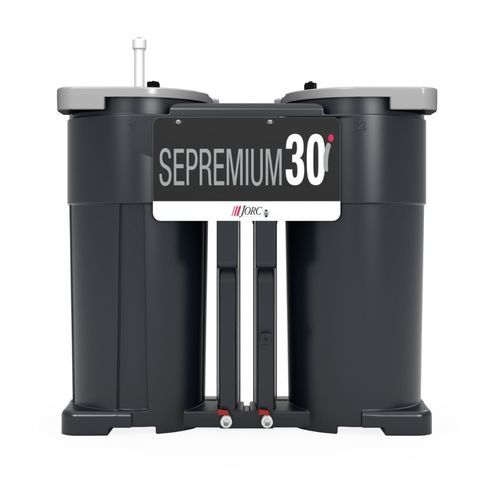

Condensate separator SEPREMIUM 30i

coalescingfor air compressorscompact

Oil–water separator
The SEPREMIUM 30i is designed for heavy-duty usage and supports compressed air flows up to 30 m³/min. It features advanced adsorption technology and final-stage activated carbon polishing to achieve a residual oil content of less than 5 ppm. Ergonomic filter elements simplify maintenance. Built-in overflow indicator light and optional remote sensor improve monitoring and help prevent downtime. Suitable for continuous, high-capacity workflows, delivering long-lasting performance and straightforward service.

Commercial benefits:

• Ideal choice for compressor capacities up to 30 m³/min.
• Implementation of NEW high-quality JORC green filtration element.
• Effective separation of mineral oil, synthetic oil and stable condensate emulsions.
• Includes an indicator flashing light; optional JORC sensor to connect to monitoring systems available.
• Service valves for draining individual towers for routine servicing and cleaning.
• Brass hose connectors for swift and secure installation.
• Exceptional value for money.

Technical advantages:

• Maximum compressor capacity 30 m³/min (1060 CFM).
• Visual element life indication.
• Lighter and easier replacement of elements.
• Sectional draining options during servicing.
• Multiple condensate inlets.
• Overflow indicator.
• Test valve & sample bottle for output testing and measuring ppm value (indication).
• Operates with all JORC type drains (timer-controlled and zero air loss).
• Customer specific finishing options available.
• Small footprint.

Specifications (table):
Max. compressor capacity: 30 m³/min (1060 CFM)
Max. oil absorption volume: 30 liters
Filter elements: 2
Activated carbon elements: 1
Inlet connection: G ½ (10 mm hose adapter)
Outlet connection: G 1 (26 mm hose adapter)
Test valve & sample bottle: Yes
Residual oil content: <5 ppm
Housing material: PE
Housing color: Black
Lid color: Grey
Test kit included: Yes
Inlet/outlet hose adapters: Included
DIBt certification: Yes
Suitable for mineral/synthetic oils: Yes
Suitable for stable emulsions/polyglycol: On request
Space requirement (LxHxP): 400 x 990 x 900

Characteristics / Technical specifications

• Supported flow up to 30 m³/min (1060 CFM).
• Typical residual oil content below 5 ppm after activated carbon polishing.
• Oil absorption capacity: 30 liters.
• Element configuration: 2 filter elements + 1 activated carbon element.
• Standardized connections: inlet G ½ (10 mm), outlet G 1 (26 mm) with supplied adapters.
• Housing material: PE, black housing and grey lid.
• Test valve and sample bottle included for ppm control.
• Maintenance simplified by ergonomic elements and sectional draining.
• Compatible with timed and zero-air-loss JORC drains.
