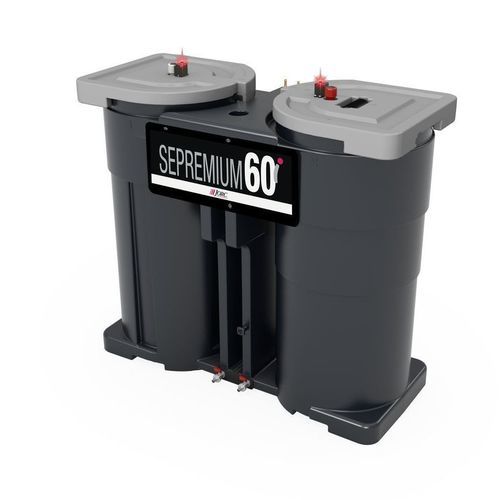

Condensate separator SEPREMIUM 60i

coalescingfor air compressorsonline

Overview
The SEPREMIUM 60i is an oil-water separator for compressed air systems managing flows up to 60 m³/min (2120 CFM). It maintains residual oil content below 5 ppm by combining replaceable adsorption elements with a final activated carbon polishing stage. Multiple condensate inlets, sectional draining valves and brass hose connectors provide flexible installation and simplified maintenance. Optional sensor integration enables automated monitoring and status reporting.

Commercial benefits

• Designed for compressor capacities up to 60 m³/min (2120 CFM).
• High-performance filtration media with activated carbon polishing stage.
• Effective separation of mineral and synthetic oils; stable emulsions/polyglycol on request.
• Includes a status indicator light; JORC sensor integration available for monitoring systems.
• Sectional service valves allow draining of individual towers for maintenance without full system shutdown.
• Brass hose connectors for fast, secure connections.
• Test kit included for on-site verification.

Technical advantages

• Maximum compressor capacity 60 m³/min (2120 CFM).
• Residual oil content <5 ppm (target).
• Visual element life indication and lightweight, easy-to-replace elements.
• Sectional draining options during servicing.
• Multiple condensate inlets and integrated overflow indicator.
• Test valve and sample bottle for output testing and ppm indication.
• Compatible with all JORC drain types (timed and zero air loss).
• Customer-specific finishing options available.

Specifications (table)
Max. Compressor Capacity: 60 m³/min (2120 CFM)
Max. Oil Absorption Volume: 60 liters
Filter Elements: 2
Activated Carbon Elements: 2
Inlet connection: G ½" (10 mm hose adapter)
Outlet connection: G 1" (26 mm hose adapter)
Test Valve & Sample Bottle: Yes
Residual Oil Content: <5 ppm
Housing Material: PE
Housing Color: Black
Lid Color: Grey
Test Kit Included: Yes
Inlet/Outlet Hose Adapters: Included
DIBt Certification: Yes
Suitable for Mineral/Synthetic Oils: Yes
Suitable for Stable Emulsions/Polyglycol: On request
Space Requirement (W×H×D): 480×1160×1040

Characteristics / technical specifications

• Model: SEPREMIUM 60i
• Maximum compressor capacity: 60 m³/min (2120 CFM)
• Residual oil content after separation: <5 ppm
• Max. oil absorption volume: 60 liters
• Filter elements: 2
• Activated carbon elements: 2
• Inlet connection: G ½" (10 mm hose adapter)
• Outlet connection: G 1" (26 mm hose adapter)
• Test valve & sample bottle: included
• Housing material: PE (black) with grey lid
• Test kit: included
• Inlet/outlet hose adapters: included
• DIBt certification: yes
• Suitable for mineral and synthetic oils; stable emulsions/polyglycol: on request
• Space requirement (W×H×D): 480×1160×1040
