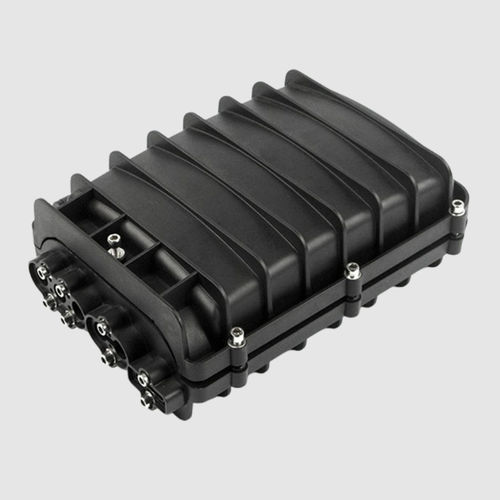

Desktop enclosure JFOC08-5804

rectangularABSfor telecom applications

Product overview
The JFOC08-5804 horizontal fiber optic closure is a compact, multi-function enclosure designed for fiber splicing and cable management in outdoor and indoor telecom installations. The page-turning box structure provides a small footprint while retaining full access to splice trays and cable entries. It supports bundle and ribbon cable types and multiple mounting options.

Features

• Mechanical sealing system ensuring reliable IP68 protection.
• Durable ABS enclosure with corrosion-resistant 304 stainless steel screws and gaskets.
• Supports both bundle and ribbon cables.
• Page-turning/compact box design for efficient space use and maintenance.
• Multiple installation methods: wall, pole, aerial, and manhole mounting.

Applications

• Telecommunication networks
• Optical cable network systems and FTTx
• LAN and CATV distribution
• Optical fiber sensing and monitoring

Specifications

• Model: JFOC08-5804
• Protection grade: IP68
• Material: ABS
• Size: 300×220×110 mm
• Splice trays: 5 trays
• Capacity: up to 60 fibers (bundle cable)
• Cable ports: 5 ports for Φ8–15 mm cable; plus 1 test port and 4 pigtail ports
• Mounting: wall, pole, aerial, manhole
