Desktop enclosure JFOC08-5803

rectangularABSfor fiber optics

Product Overview

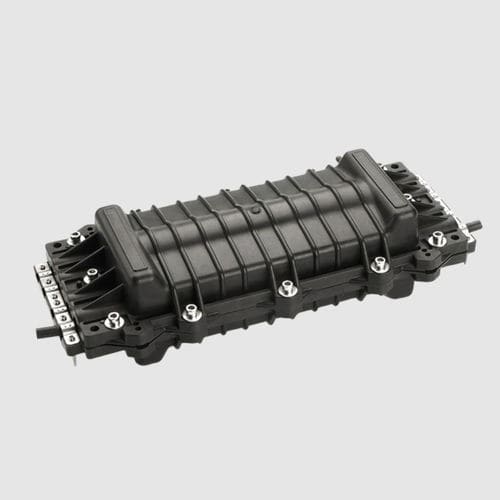

JFOC08-5803 is a horizontal fiber optic closure designed to connect and protect fiber cables in aerial, pipeline and manhole installations. Constructed from ABS engineering plastic, it provides 3 inlet and 3 outlet cable ports (6 ports total) and supports both bundle and ribbon cables.

Product Features

• Mechanical sealing structure for reliable sealing and easy operation
• Protection grade: IP68
• Compatible with bundle and ribbon fiber cables
• Corrosion-resistant hardware: screws and gaskets in 304 stainless steel
• Flexible installation: aerial, pipeline, manhole

Product Application

• Optical fiber sensing
• Optical cable network systems
• Telecommunication networks
• LAN and CATV networks

Specifications

• Model: JFOC08-5803
• Size: 454×201×122 mm
• Material: ABS (engineering plastic)
• Splice trays: 6 trays
• Capacity: Bundle cable 144F; Ribbon cable 288F
• Cable ports: 6 ports (3 inlet, 3 outlet)
• Protection grade: IP68
• Installation: aerial, pipeline, manhole
