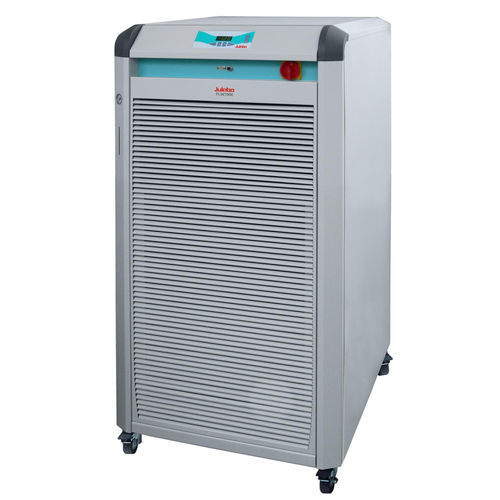

Water-cooled recirculation chiller FLW7006
liquidlaboratorycompact

water-cooled recirculation chiller
water-cooled recirculation chiller
Add to favorites
Compare this product


Characteristics

Material
liquid
Applications
laboratory
Other characteristics
compact, stainless steel, water-cooled
Power

1.3 kW, 3.1 kW, 5.5 kW, 7 kW, 7.4 kW

Maximum temperature

Max.: 40 °C
(104 °F)

Min.: -20 °C
(-4 °F)

Flow rate

60 l/min
(15.85 us gal/min)

Pressure

Max.: 6 bar
(87.023 psi)

Min.: 0.5 bar
(7.252 psi)

Description

The powerful FL models are suitable for a wide range of cooling tasks in industrial environments, such as removal of large process heat. 2 variants: Air-cooled (FL) and water-cooled (FLW). Optional heating function On request, we also offer our FL recirculating chillers with an additional integrated heating function and other special solutions. Our product experts will be happy to advise you individually in order to design a temperature control unit that is exactly right for your needs. Just give us a call! Product Features • Ergonomic design and easy operation • Splash-proof keypad • Large, bright LED display • Permissible temperature in return line +80°C • Easy filling from the top with hinged protective lid • Low liquid level protection with optical and audible alarm signal • Integrated stainless steel bath tanks • Front drain • No side vents, instruments can be placed right next to other equipment • RS232 interface for PC connection • IP class according to IEC 60529: 21 • Alarm output, potential-free change-over contact (max. 30 VA) • Pressure Indicator
