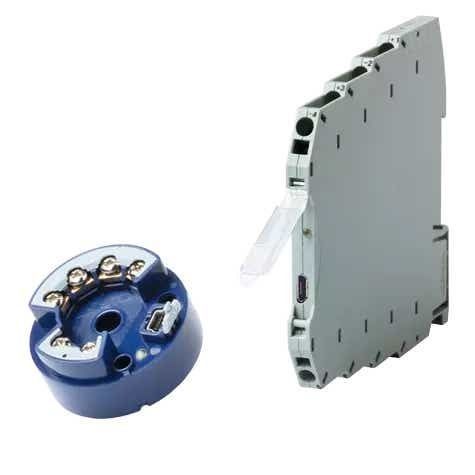

DIN rail mount temperature transmitter dTRANS T05

probe head-mountedtype S thermocoupletype J thermocouple

Product overview
SKU: 707050
Name: JUMO dTRANS T05
Short description: Programmable transmitter in two-wire technology
Availability: In Stock
State: TOP_SELLER

Description
The JUMO dTRANS T05 is a two‑wire programmable transmitter for converting temperature and resistance sensor signals into a 4–20 mA output. It accepts RTD probes (Pt100/Pt500/Pt1000), thermocouples (R, S, B, J, T, E, K, N, L, U, A1, C, D), resistance transmitters and potentiometers. The device supports two‑, three‑ and four‑wire circuits and is available for installation in terminal head type B or on a 35 × 7.5 mm DIN rail.

Highlights

• Configuration via standard USB cable without auxiliary power
• Customer-specific linearization
• Control LED (red/green)
• Storage of min./max. values
• Sensor temperature readout via drag indicator function
• Invertible 4–20 mA output; NAMUR NE21 (head) / NE43 (DIN rail)

Variants

• Electrical connection: Screw terminal; Spring-cage terminals
• Basic type: 2‑wire transmitter; 2‑wire DIN rail transmitter

Technical data
Galvanic isolation: 3.75 kV / 1.875 kV. Ambient temperature: -40 to +85 °C (standard); -10 to +70 °C (DIN rail). Installation: terminal head type B or on 35 × 7.5 mm DIN rail. RTD input: Pt100, Pt500, Pt1000, resistance transmitter; 2-/3-/4‑wire. Thermocouple input: R, S, B, J, T, E, K, N, L, U, A1, C, D; input range -100 to +1100 mV. Calibration accuracy: ±0.05 %. Output: 4–20 mA (invertible). Voltage supply: DC 1–35 V (two-/three‑wire). Configuration: via standard USB cable without auxiliary energy. Special features: USB interface, customer-specific linearization, control LED (red/green), min./max storage, drag indicator for sensor temperature.

Specifications

• SKU: 707050
• Product name: JUMO dTRANS T05
• Type: Programmable two‑wire transmitter
• Sensor inputs: RTD (Pt100/Pt500/Pt1000), thermocouples (R,S,B,J,T,E,K,N,L,U,A1,C,D), resistance transmitters, potentiometers
• Wiring: two‑wire, three‑wire, four‑wire
• Output signal: 4–20 mA (invertible)
• Galvanic isolation: 3.75 kV / 1.875 kV
• Ambient temperature range: -40 to +85 °C (standard); -10 to +70 °C (DIN rail)
• Calibration accuracy: ±0.05 %
• Voltage supply: DC 1–35 V
• Installation options: terminal head type B or DIN rail 35 × 7.5 mm
• Configuration: USB (standard cable, no auxiliary power)
• Special features: customer-specific linearization, control LED, min/max storage, drag indicator
