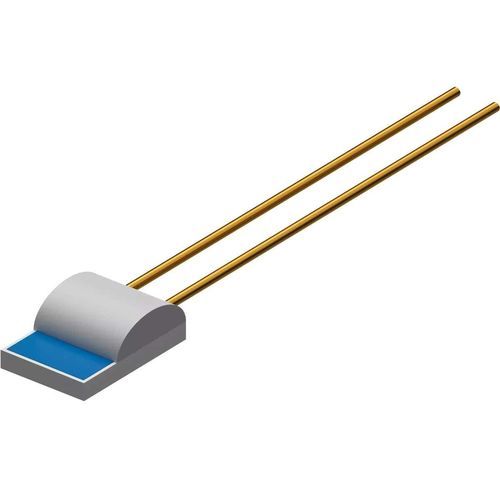

Pt1000 temperature sensor PCW-M-AuNi

platinum resistivethin-filmPt500

Overview
Platinum chip temperature sensors of the PCW design type are thin-film temperature sensors used across multiple industrial sectors. Typical application areas include:

• heating engineering
• air conditioning technology
• ventilation technology
• industrial technology
• medical and laboratory engineering
• white goods
• mechanical engineering
• motor and commercial vehicles

Highlights

• High long-term stability
• Standardized nominal values and tolerances
• High measuring accuracy

General technical data (table)
Design type: PCW-M-AuNi
Standard: DIN EN IEC 60751
Temperature range: -70 to +500 °C
Temperature coefficient: α = 3.850 × 10-3 °C-1 (between 0 and 100 °C)
Connection wires: Gold-plated nickel wire
Processing: Welding, soldering, and crimping
Advantages: Standardized nominal values (Pt100, Pt500, Pt1000), standardized tolerances, high degree of measuring accuracy, excellent long-term stability, very good reproducibility of electrical properties
Areas of application: Heating engineering, air conditioning technology, ventilation technology, industrial technology, medical and laboratory engineering, white goods, mechanical engineering, and motor and commercial vehicles


Characteristics / Technical specifications

• Design type: PCW-M-AuNi
• Standards: DIN EN IEC 60751
• Temperature range: -70 to +500 °C
• Temperature coefficient: α = 3.850 × 10-3 °C-1 (0 to 100 °C)
• Available nominal resistances: Pt100, Pt500, Pt1000
• Connection wires: Gold-plated nickel wire
• Processing methods: Welding, soldering, crimping
• Key properties: High measuring accuracy; excellent long-term stability; standardized tolerances; very good reproducibility of electrical properties
• Typical application areas: Heating, air conditioning, ventilation, industrial technology, medical and laboratory engineering, white goods, mechanical engineering, motor and commercial vehicles
