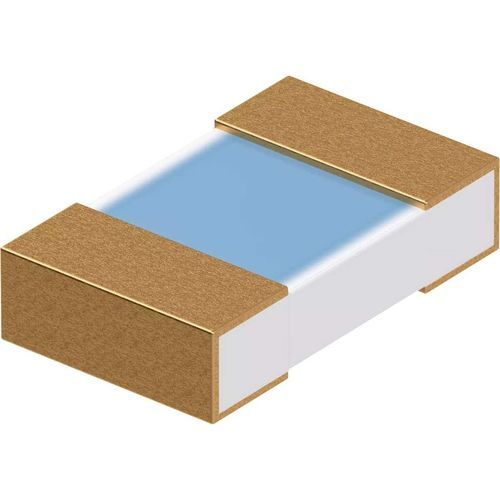

Pt500 temperature sensor SMD-L-AuNi

Pt100platinum resistivethin-film

Overview
Platinum-chip temperature sensors use thin-film technology for precise temperature measurement and compensation. Available as nominal resistances Pt100, Pt500 and Pt1000, they are designed for surface and ambient measurements on printed circuit boards and for integration in temperature probes and monitoring or compensation circuits.

Short Description
SMD design according to DIN EN IEC 60751, design type SMD-L-AuNi; suitable for automatic placement (SMD sizes 0805 and 1206).

Technical data
Design type: SMD-L-AuNi
Standard: DIN EN IEC 60751
Temperature range: -70 to +250 °C
Temperature coefficient: α = 3.850 × 10-3 °C-1 (between 0 and 100 °C)
Connection: Gold-plated nickel solder contact, Ni layer ≥ 1 µm, Au ≥ 40 nm; solderability according to IEC / DIN EN 60068-2-58
Processing: Reflow soldering

Advantages

• Designed for automatic placement (SMD 0805 and 1206)
• AEC-Q200 available for selected sensors
• Uniform high-purity contact layer for improved solder connections
• High measurement accuracy and long-term stability
• Standardized nominal values and tolerances
• Fast thermal response

Areas of application

• Surface and ambient temperature measurements on circuit boards (e.g. in temperature probes, temperature monitoring or compensation circuits)

Specifications / Technical details

• SKU: 906141
• Model / Design type: SMD-L-AuNi
• Standard: DIN EN IEC 60751
• Temperature range: -70 to +250 °C
• Temperature coefficient: α = 3.850 × 10-3 °C-1 (between 0 and 100 °C)
• Connection: Gold-plated nickel solder contact, Ni ≥ 1 µm, Au ≥ 40 nm; solderability IEC / DIN EN 60068-2-58
• Processing: Reflow soldering
• Available nominal resistances: Pt100, Pt500, Pt1000
• SMD sizes: 0805 and 1206
• AEC-Q200 available for selected sensors
