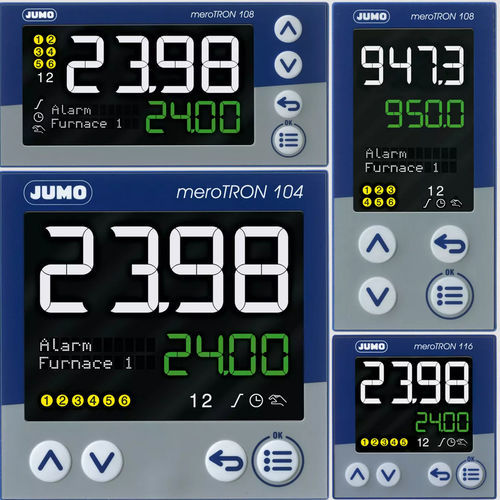

Multi-function controller meroTRON

The multifunctional controller impresses with the individual design of its user interface and hardware equipment. This way, analog as well as digital inputs and outputs, counting inputs, and interfaces can be added as required. The controller masters even complex applications with a second control channel, math and logic functions, and the implementation of control functions via ST code. Customer benefits at a glance Process reliability through precise control with program start and sequence controls in real time Implementation of sophisticated applications using math and logic functions as well as ST code Less time required during startup and operation due to individualization of the device menu No need for additional hardware due to second control channel as well as PLC and data logger functions Process optimization through Startup live recording general technical data Inputs - 1 analog input and 1 digital input; optional additional analog, digital and counting inputs (10 kHz); calibration of analog inputs according to CQI-9 and AMS2750 (optional) Outputs - 2 relays (normally open contact); optionally additional analog outputs, relays (normally open contact, changeover contact) solid state relays, logic outputs (0/14 V or 0/24 V) and open collector outputs Control types - Two-state controller, three-state controller, modulating controller, position controller, continuous controller, program controller Display - 2 LCD displays with 18 segments each including display of texts for menu, parameters, and process information Formats - 116: 48 × 48 mm; 108H: 48 × 96 mm; 108Q: 96 × 48 mm; 104: 96 × 96 mm
