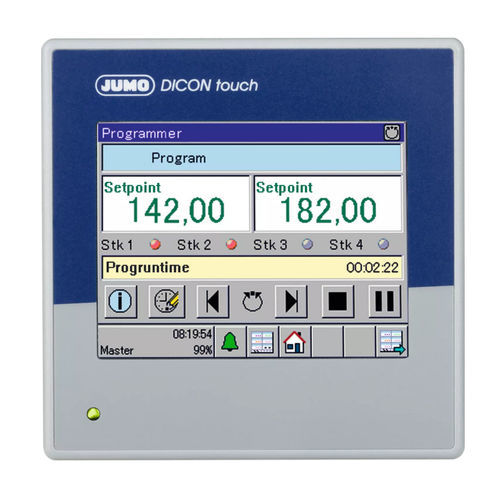

Integrated programmable controller DICON

DIN railoutputsRS485

DICON touch can be used to perform complex control and management tasks. The plant can be visualized and operated via freely-definable process screens. The device has a modular design and can therefore be adapted to the individual plant. Modular hardware Integrated paperless recorder (optional) Password-protected user management general technical data Outputs - Max. 12 internal: relays (changeover contact/normally open contact); logic output 0/12 V or 0/24 V; semiconductor output 1 A; analog output 0/4 to 20 mA or 0/2 to 10 V; switching outputs can be expanded with 2 external modular assemblies; voltage supply for two-wire transmitter via 24 V logic output Controller type - Two-state controller; three-state controller; modulating controller; continuous controller; continuous controller with integrated position controller Controller structure - P; I; PD; PI; PID (4 sets of control parameters per channel) Alarms - 16 limit value monitoring functions with 8 selectable alarm functions with timer and confirmation function each Number of control channels - 2 independent and user configurable control channels Program controller - 10 programs each with 50 sections; 8 control tracks Format - 96 mm × 96 mm × 131 mm Voltage supply - AC/DC 20 to 30 V, 48 to 63 Hz or AC 110 to 240 V +10/-15 %, 48 to 63 Hz Approvals - cULus; DIN EN 14597; GL; AMS2750/CQI-9
