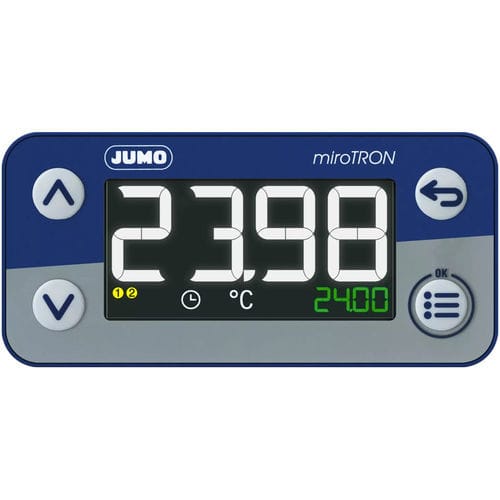

Electronic thermostat miroTRON

relay230VAC115VAC

The JUMO miroTRON is a digital electronic thermostat for simple temperature control with optional PID two-point controller function and measurement inputs for RTD temperature probes or thermocouples and standard signals. Technical data general technical data Measurement inputs - RTD temperature probes, thermocouples, or standard signals Outputs - Up to 4 relays Voltage supply - AC 230 V, +10/-15 %, 48 to 63 Hz, AC 115 V, +10/-15 %, 48 to 63 Hz, DC 12 to 24 V, +15/-15 % Formats - 701080: (76 × 36 × 62) mm; 701081: (76 × 36 × 72) mm Approval - cULus Special features - Intuitive startup and operation, high degree of control quality due to optional PID autotuning, integrated timer function, service and operating hours counter, cost-effective solution for simple control applications
