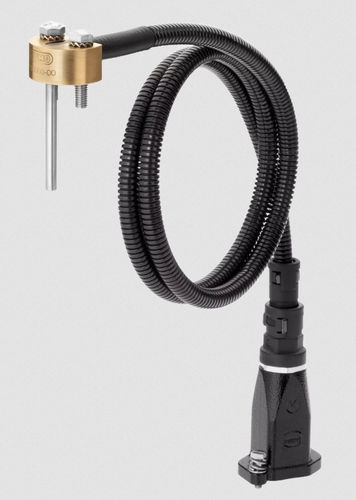

NTC temperature probe railTEMP

Pt100Pt1000DIN rail

JUMO railTEMP has a qualified measuring insert especially developed for railway applications with up to 2 sensing elements and can be equipped with different sensors. The firmly attached connection line is available with a variety of different connections or high-quality connectors. Halogen-free materials and cable protection ensure maximum safety in rail transport as well as reliable measurement results. general technical data Approvals - DIN EN 50155, DIN EN 61373, EN 45545 Special features - Shielded line, cable protection, multiple connectors available Operating temperature - -50 to +200 °C Sensor - Pt100, Pt1000, NTC 5kΩ Measuring circuits - 1/2 Protection fitting - Stainless steel/CuZn Connection line - Halogen-free connection line
