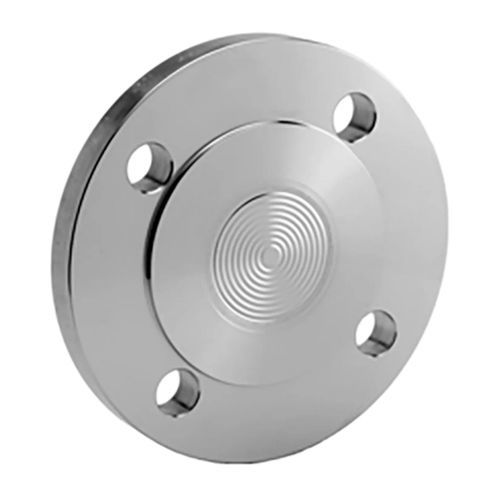

Diaphragm seal with flange connection 409784

processfor stainless steel

Diaphragm seals protect the pressure measuring device from contaminated, hot, highly viscous, stagnant, crystallizing, and especially corrosive media. This product has been designed according to DIN EN 1092-1 and is available with a sealing strip type B1. Optionally with tube Various process connections Optionally with PTFE coating general technical data Material - Stainless steel Filling medium - Silicone oil, halogenated oil, vegetable oil Capillary tube - 1 m, 1.5 m, 2 m, 3 m, 5 m Tube length - 50 mm, 100 mm, 150 mm, 200 mm Connection: - Flange connection according to DIN EN 1092-1, with sealing strip type B1
