Current transformer IPC 300

encapsulatedvoltageprotection

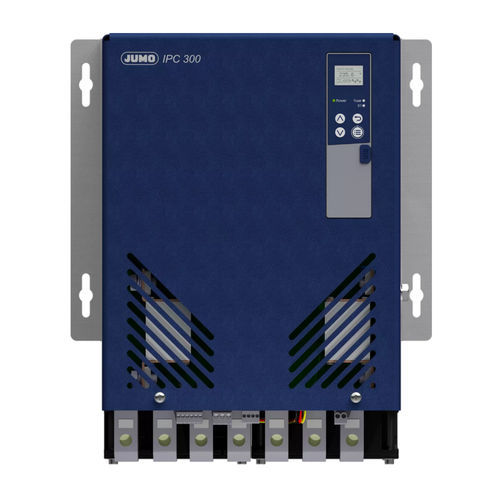

The JUMO IPC 300 is an electronic transformer for controlling heating loads. Due to the amplitude control, the mains current is proportional to the required performance. This reduces interference (flicker, harmonics) and energy costs while increasing the durability of MoSi2 and SiC heating elements, which in turn reduces operating costs. Reduction of reactive power Lower electricity and operating costs Greater plant availability general technical data Service - Up to 40 kW Operating mode - Amplitude control Subordinate control loop - U², P, I² Output - Analog output 0(4) to 20 mA, 0(2) to 10 V or 0(1) to 5 V Display - LCD with plain text display Operation - Keypad on the device Configuration - Setup program with transfer of parameters via USB interface without voltage supply (USB powered); keys and display Protective functions - Short-circuit control during activation procedure, r-control, integrated semiconductor fuses for protection against ground fault Special features - Gentle mains operation with high-powered resistive loads (flicker); minimal harmonics in the plant's network; compensation of the aging process for SiC heating rods with an indication when the voltage reserve is no longer sufficient for compensation; control regardless of the heating elements' resistance characteristic; protection of molybdenum disilicide heating elements against overheating in the upper temperature range Dimensions - 348.6 × 300 × 217 mm or 403.5 × 300 × 257.5 mm
