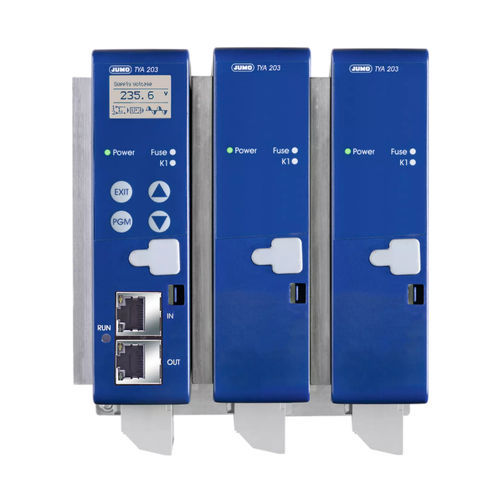

Thyristors power controller TYA 203

digitalthree-phaseDIN rail

The areas of application for thyristor power controllers are anywhere where larger resistive and resistive inductive loads have to be switched. The thyristor power controller with a load current of 20 A can either be clipped to a 35 mm mounting rail or fitted to a wall with a mounting plate. LCD display with info line Close mounting possible Setup program via USB interface general technical data Subordinate control loop - U, U2 control (as a standard feature); I, I2, P control (optional) Load voltage - 24 V, 42 V, 115 V, 230 V, 400 V, 460 V, 500 V Load currents - 20 A, 32 A, 50 A, 100 A, 150 A, 200 A, 250 A Operating modes - Phase-angle control, burst-firing operation, half-wave control, SSR logical operation, fast logical operation, alpha start, soft start Special features - Current limiting, mains load optimization, dual energy management, "Teach-In" function (partial load failure detection), "r-control" (resistance limitation), intelligent diagnosis system, integrated semiconductor fuse, device configuration without auxiliary voltage, vibrant display, "True RMS" (root mean square) Approval - cULus Ambient temperature - -20 to +70 °C Load type - Resistive load, resistive inductive load, cold/warm ratio 1:16, transformer load, infrared emitter (short, medium, long-wave), carbon emitter Control voltage - Control voltage = load voltage Configuration - Setup/USB-powered; plain text display on the device
