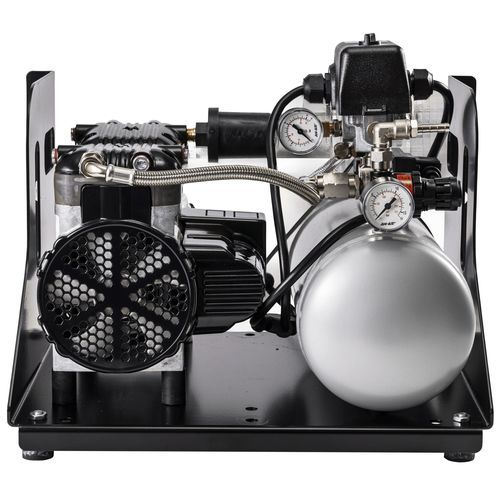

Rocking piston compressor BEV G4

airelectrically-poweredoil-free

Overview
Systems powered by our model 86R and 87R deliver higher-pressure performance while maintaining significantly lower sound levels. Engineered to operate at lower exhaust temperatures, both 86R and 87R provide extended service life, continuous operation at 100% duty cycle and oil-free compression for reliable, contaminant-free pressurized air.

Highlights

• Corrosion-Resistant and Oil-Free: Provides clean, contaminant-free air suitable for sensitive applications
• Higher-Pressure Performance: Patented crossover chamber design balances airflow to reduce noise and optimize pressure delivery
• Basic Systems: Open compressor and tank configurations (tank sizes from 4 to 90 liters) with filters, regulators and automatic drains
• Cabinet Systems: Fully enclosed compressor and tank (tank sizes from 4 to 40 liters) reducing sound by 15%–20%. Includes temperature-controlled fans, filters, regulators and gauges; optional dryer systems available

Technical specifications

• Item #: 1994015
• Series: Rocking Piston Systems
• Model: BEV G4
• HP: 0.5
• Weight: 44 lb (20 kg)
• Open Flow: 2.7 cfm (60 Hz) — 76 LPM (60 Hz)
• Voltage (60 Hz): 120
• Regulatory: cULus
• Max Pressure: 116 psi (8.0 Bar)
• Country of Origin (COO): US
• Sound Level: 59 dBA
• Dimensions: 17 L x 13 W x 13 H [in] — 431.8 x 330.2 x 330.2 [mm]
