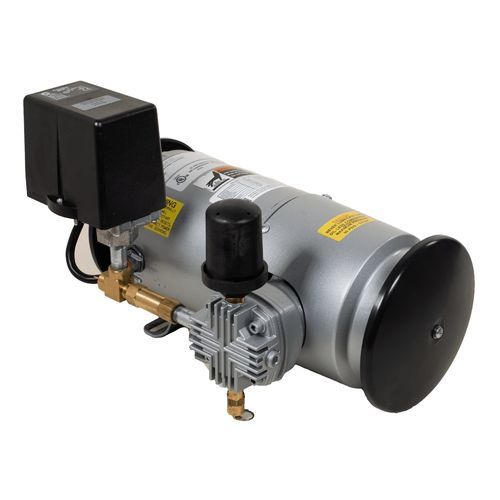

Piston compressor 1LAA-46S-M100GX

reciprocatingairelectrically-powered

Description
Gast tank systems are engineered for use in demanding operating environments. Offered in a basic (uncovered) configuration, these assemblies incorporate Gast single-cylinder piston compressor technology with oil-free operation and corrosion-resistant internal components. Systems are available in multiple tank sizes and mounting options to adapt to application requirements.

Design and operation
Powered by compact, lightweight 1H/1L/2L single-cylinder piston compressors, these assemblies deliver compressed air across a range of pressures and flow rates. The oil-free design and corrosion-resistant internals reduce contamination risk and simplify maintenance. Tank-mounted and riser mount options facilitate installation in constrained or elevated locations.

Highlights

• Oil-free operation: provides contaminant-free compressed air
• High pressure capability: suitable for applications requiring consistent pressure up to 50 psi (3.45 bar)
• Tank-mounted: available in tank sizes from 2 to 60 gallons
• Riser mount options: elevates compressor for easier access and maintenance

Product identifiers
Item #: 1LAA-46S-M100GX
Series: Piston Systems
Description: RECIPROCATING COMPRESSOR

Technical specifications

• HP: 0.17
• Amps (60 Hz): 3.5
• Weight: 22.5 lb (10 kg)
• Open Flow (60 Hz): 1.5 cfm (42 LPM)
• Voltage (60 Hz): 115 V
• Regulatory: cULus
• Max Pressure: 50 psi (3.45 bar)
• Phase: Single Phase
• Country of Origin: USA
• Flow @ Max Pressure (60 Hz): 1.0 cfm (28.3 LPM)
• Sound Level: 76 dBA
• Dimensions: 15.25 L x 8.72 W x 8.11 H in (387.4 x 221.5 x 206.0 mm)
