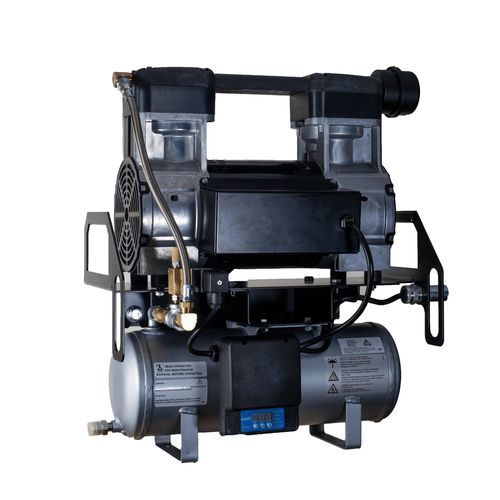

Reciprocating compressor 120R-200Sairelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- reciprocating
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-free
- Voltage
- 230 V
- Tank volume
Min.: 4 l
(1.1 gal)Max.: 90 l
(23.8 gal)- Pressure
Min.: 0 bar
(0 psi)Max.: 8.62 bar
(125.02 psi)- Flow
Min.: 8.5 m³/h
(300 ft³/h)Max.: 18.69 m³/h
(660 ft³/h)- Power
Min.: 1.49 kW
(2.03 hp)Max.: 1.49 kW
(2.03 hp)- Length
Min.: 514.1 mm
(20.24 in)Max.: 514.1 mm
(20.24 in)- Width
Min.: 334.3 mm
(13.16 in)Max.: 334.3 mm
(13.16 in)- Height
Min.: 585 mm
(23.03 in)Max.: 585 mm
(23.03 in)- Weight
Min.: 43 kg
(94.8 lb)Max.: 43 kg
(94.8 lb)- Noise level
Min.: 83 dB
Max.: 83 dB
Description
Overview
Systems powered by the 120R air compressor deliver higher-pressure performance with lower sound levels. Engineered for maximum airflow and reduced amp draw, the 120R provides significant output in a compact footprint. The unit is oil-free, built with corrosion-resistant materials, and supplies clean, contaminant-free compressed air across a range of pressures and flow rates.
Highlights
Technical specifications
Systems powered by the 120R air compressor deliver higher-pressure performance with lower sound levels. Engineered for maximum airflow and reduced amp draw, the 120R provides significant output in a compact footprint. The unit is oil-free, built with corrosion-resistant materials, and supplies clean, contaminant-free compressed air across a range of pressures and flow rates.
Highlights
- Higher-pressure performance: patented crossover chamber design regulates airflow to reduce noise and optimize output.
- Basic systems: uncovered compressor and tank (available from 4 to 90 liters) supplied with filters, regulators and automatic drains.
- Cabinet systems: fully enclosed compressor and tank (available from 4 to 40 liters), reducing sound by 15%–20%; includes temperature-controlled fans, filters, regulators and gauges; optional dryer systems available.
- High pressure at lower amps: strong output with a smaller footprint and lower current draw.
Technical specifications
- Item #: 120R-200S
- Series: Rocking Piston Systems
- Description: Reciprocating compressor
- HP: 2
- Amps: 50Hz: 8
60Hz: 10
DC: — - Weight: 94 lb [standard] / 43 kg [metric]
- Open Flow (standard): 50Hz: 9 CFM · 60Hz: 11 CFM
Open Flow (metric): 50Hz: 255 LPM · 60Hz: 311 LPM - Voltage: 50Hz: 230 V · 60Hz: 230 V · DC: —
- Regulatory: N/A
- Max Pressure: 125 psi [standard] · 8.62 Bar [metric]
- Phase: Single phase
- Country of Origin: USA
- Flow @ Max Pressure (standard): 50Hz: 5 CFM · 60Hz: 5.5 CFM
Flow @ Max Pressure (metric): 50Hz: 141.6 LPM · 60Hz: 155.7 LPM - Sound Level: 83 dBA
- Dimensions (standard): 20.24 L x 13.16 W x 23.03 H [in]
Dimensions (metric): 514.1 L x 334.3 W x 585.0 H [mm]
