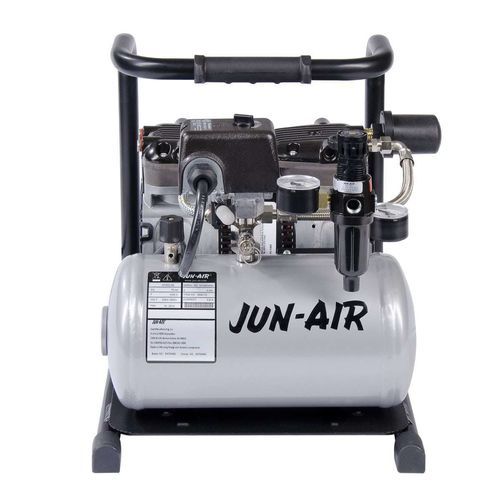

Rocking piston compressor 86R-87R

airelectrically-poweredstationary

Overview
Systems powered by the 86R and 87R models provide higher-pressure performance with low sound levels. Designed for lower exhaust temperature and continuous 100% duty cycle, these oil-free, corrosion-resistant rocking-piston compressors deliver contaminant-free pressurized air and extended service life.

Highlights

• Corrosion-resistant and oil-free: Ensures clean, contaminant-free air suitable for applications requiring oil-free supply.
• Higher-pressure performance: Patented crossover chamber regulates airflow to dampen sound and optimize pressure delivery.
• Basic systems: Open compressor and tank options (4–90 L) with filters, regulators and automatic drains.
• Cabinet systems: Fully enclosed units (4–40 L) reducing sound by 15–20%; include temperature-controlled fans, filters, regulators, gauges and optional dryers.

Technical specifications

• Item #: 1760400
• Series: Rocking Piston Systems
• Model: 87R-4B-JEEAA
• Power: 0.5 HP
• Current: 2.5 A (50Hz); 2.8 A (60Hz)
• Weight: 40 lb (18 kg)
• Open flow (no load): 2.9 cfm (50Hz) / 3.2 cfm (60Hz) — 82 LPM (50Hz) / 91 LPM (60Hz)
• Voltage: 230 V (50Hz / 60Hz)
• Regulatory: CE
• Max pressure: 120 psi (8.27 bar)
• Phase: Single phase
• Country of origin: USA
• Flow @ max pressure: 1.0 cfm (50Hz) / 1.2 cfm (60Hz) — 28.3 LPM / 34.0 LPM
• Sound level: 63 dBA
• Plug type: TP-52 16A EU
• Dimensions (L x W x H): 16.09 x 11.81 x 13.31 in (408.7 x 300.0 x 338.1 mm)
• Additional notes: Patented crossover chamber for noise damping; designed for lower exhaust temperature and continuous duty; oil-free, corrosion-resistant construction.
• Regulatory / Warnings: Prop 65 — product may contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
