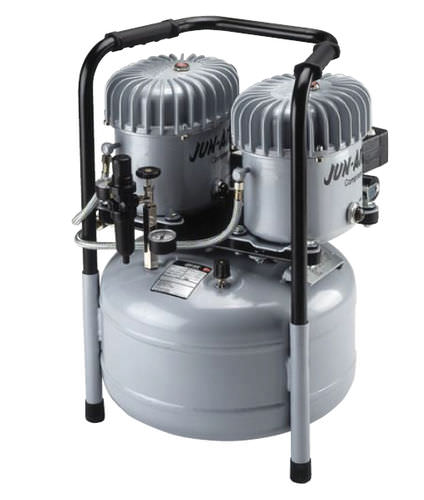

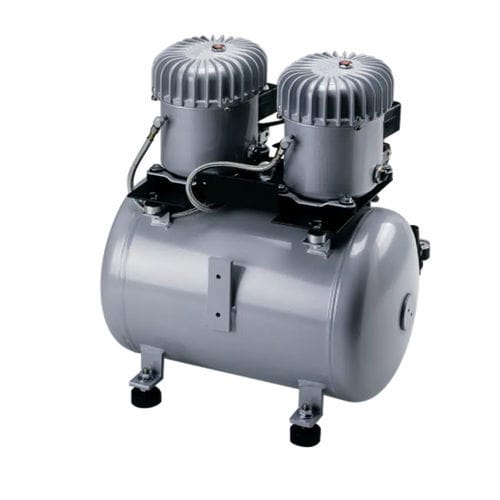

Piston compressor - 12-25 - JUN-AIR - air / electric / stationary
Piston compressor - 12-25 - JUN-AIR - air / electric / stationary
Piston compressor - 12-25 - JUN-AIR - air / electric / stationary - image - 2
Piston compressor - 12-25 - JUN-AIR - air / electric / stationary - image - 3
Add to favorites
Compare this product

Characteristics

Technology
piston
Type
air
Power source
electric
Portability
stationary
Lubrication
lubricated
Application domain
industrial, for medical applications, for dental applications, for food applications
Applications
laboratory, service, for automobiles, for machines, for tanks
Other characteristics
low-noise, tank-mounted, with tank, high-efficiency, energy-saving
Tank volume

Max.: 10.6 gal

Min.: 6.6 gal

Pressure

120 psi

Flow

Max.: 0 m³/s
(0 ft³/s)

Min.: 0 m³/s
(0 ft³/s)

Power

0.69 kW, 0.81 kW, 1.03 kW
(0.94 hp, 1.1 hp, 1.4 hp)

Length

419 mm, 553.7 mm, 4,005 mm
(16.5 in, 21.8 in, 157.68 in)

Width

409.7 mm, 444.5 mm, 539.75 mm
(16.13 in, 17.5 in, 21.25 in)

Height

579.1 mm, 584.2 mm, 590.55 mm
(22.8 in, 23 in, 23.25 in)

Weight

44.9 kg, 48.1 kg, 62.1 kg
(99 lb, 106 lb, 136.9 lb)

Noise level

48 dB, 50 dB

Description

Designed for quiet operation and durability, our JUN-AIR tank systems are the go-to solution for demanding applications with the harshest operating conditions. Available in basic (uncovered) style, these systems incorporate our latest lubricated piston compressor technology, offering best-in-class reliability, quality, and performance. These plug-and-play systems are available in numerous tank sizes and mounting options allowing customization to suit specific applications. Systems powered by our energy efficient model 12-25,12-40,18-40 lubricated piston compressors efficiently provide pressurized air at a wide range of pressures and air flow rates. Engineered to run at a 50% duty cycle and last long with minimal wear and tear, these systems are vibration free and extremely quiet with noise levels below 45 dB(A). The 12-25,12-40,18-40 lubricated piston systems are versatile and ideal for applications in dental and medical equipment, laboratory instruments, industrial machinery, food and beverage processing, and the automotive industry.
