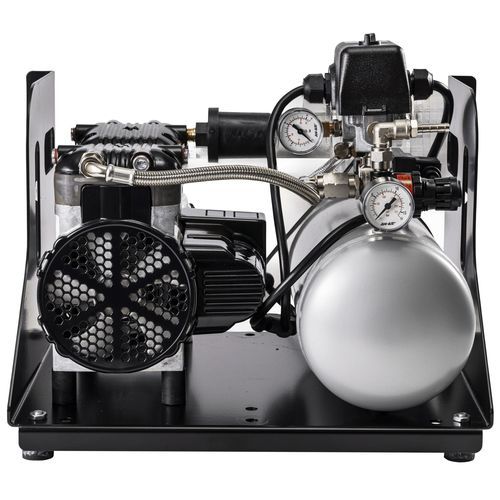

Rocking piston compressor 86R-87R

airelectrically-poweredoil-free

Overview
Systems powered by models 86R and 87R deliver higher-pressure performance at reduced sound levels. Designed for lower exhaust temperatures, these units provide extended service life, continuous 100% duty cycle operation and oil-free compression for clean, contaminant-free pressurized air.

Highlights

• Corrosion-resistant and oil-free: Ensures clean, contaminant-free air for sensitive applications.
• Higher-pressure performance: Patented crossover chamber design regulates airflow to reduce sound and optimize pressure output.
• Basic systems: Uncovered compressor and tank (sizes from 4 to 90 L) equipped with filters, regulators and automatic drains.
• Cabinet systems: Fully enclosed compressor and tank (sizes from 4 to 40 L) with temperature-controlled fans, filters, regulators and gauges; reduces sound by 15%–20% and offers optional dryer systems.

Product Identification
Item #: 1994010
Series: Rocking Piston Systems
Description: BEV G6

Key Specifications

• Model / Commercial name: BEV G6
• Series: Rocking Piston Systems
• Item #: 1994010
• Horsepower (HP): 0.5
• Amps (60 Hz): 5.7
• Voltage (60 Hz): 120 V
• Weight: 44 lb (20 kg)
• Country of Origin: US
• Regulatory: cULus
• Max Pressure: 116 psi (8.0 Bar)
• Flow @ Max Pressure (60 Hz): 1.25 cfm (35.4 LPM)
• Sound Level: 65 dBA
• Plug Type: NEMA 5-15P
• Dimensions (in): 16.97 L x 13.02 W x 12.79 H
• Dimensions (mm): 431.0 L x 330.7 W x 324.9 H
