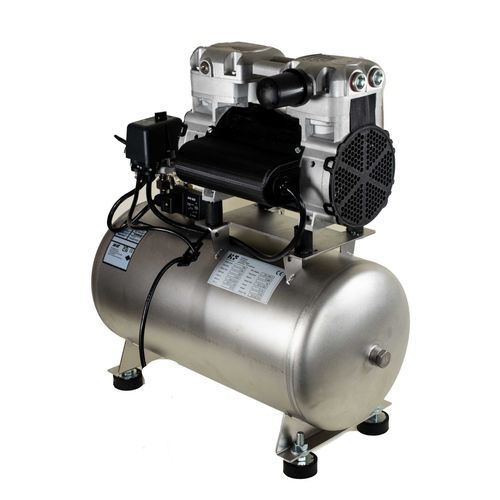

Rocking piston compressor 106R-25HBSS

airelectrically-poweredstationary

Description
Designed for flexibility, quiet operation and efficient performance, JUN-AIR tank systems handle demanding tasks across a wide range of industrial and laboratory applications. Available in basic and cabinet configurations, these plug-and-play units incorporate Gast rocking piston compressor technology to deliver reliable, oil-free compressed air with low exhaust temperatures and corrosion-resistant components.

Highlights

• Higher-Pressure Performance: Patented crossover chamber design regulates airflow to dampen sound and optimize performance.
• Cool Operating Temperature: Low exhaust temperature reduces the need for fans, cooling coils or heat-resistant materials.

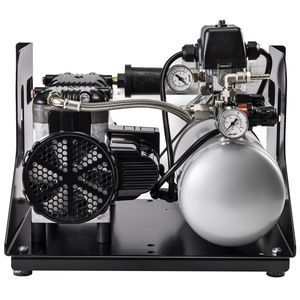

• Basic Systems: Uncovered compressor and tank (sizes from 4 to 90 liters) with filters, regulators and automatic drains.
• Cabinet Systems: Fully enclosed compressor and tank (sizes from 4 to 40 liters), reducing sound by 15–20%. Includes temperature-controlled fans, filters, regulators, gauges and optional dryer system.

Technical specifications

• Item #: 1068368
• Series: Rocking Piston Systems
• Model (commercial designation): 106R-25HBSS 230V/50-60HZ
• Horsepower (HP): 0.75
• Amps: 3.5 (50Hz), 3.6 (60Hz)
• Open Flow: 3.7 CFM (50Hz) / 4.3 CFM (60Hz) — 105 LPM (50Hz) / 122 LPM (60Hz)
• Flow @ Max Pressure: 1.8 CFM (50Hz) / 2.2 CFM (60Hz) — 51.0 LPM (50Hz) / 62.3 LPM (60Hz)
• Max Pressure: 87 psi (6.0 bar)
• Max Sound Level: 64 dBA
• Voltage: 230 V (50Hz & 60Hz)
• Phase: Single Phase
• Plug Type: TP-52 16A EU
• Weight: 52 lb / 24 kg
• Dimensions: 22.28 L x 10 W x 23.23 H in
  565.9 L x 254.0 W x 590.0 H mm
• Regulatory: CE
• Country of Origin (COO): USA
