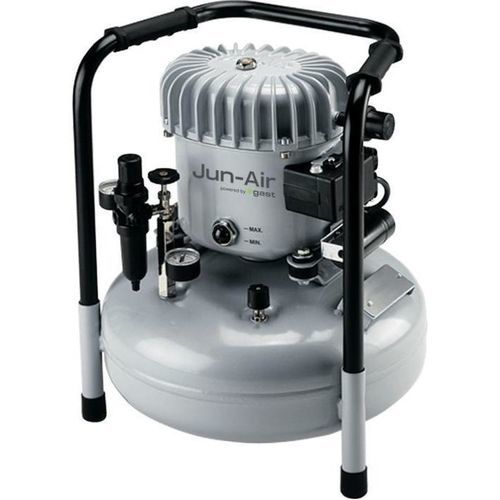

Piston compressor 6-15

airelectrically-poweredstationary

Overview
Designed for quiet operation and durability, JUN-AIR tank systems are plug-and-play solutions for demanding applications and harsh operating conditions. These systems incorporate lubricated piston compressor technology delivering reliable pressurized air across a range of pressures and flow rates. Available in multiple tank sizes and mounting options to allow customization for specific uses. Systems powered by the energy-efficient 6-4/6-15/6-25 lubricated piston compressors are engineered to run at a 50% duty cycle with minimal wear, low vibration and extremely quiet operation (noise ≤ 45 dB(A)).

Usage & applications
Ideal for dental and medical equipment, laboratory instruments, industrial machinery, food and beverage processing, and automotive industry applications.

Highlights

• Lubricated: Reduces friction and wear and protects against corrosion to extend component life.
• Cool operating temperature: Minimizes need for fans or additional cooling components.
• Quiet and low vibration: Suitable for noise-sensitive environments; sound level ≤ 45 dB(A).
• Tank: Tank size range 1.1–6.6 gallons.

Features / Technical specifications

• Item #: 1355002
• Series: Lubricated Piston Systems
• Model designation: 6-15
• Description: 6-15 230V/50-60Hz w/outlet co
• Horsepower (HP): 0.46
• Amps: 2.9 (50Hz), 2.9 (60Hz)
• Weight: 57 lb / 26 kg
• Open Flow: 1.77 CFM (50Hz), 2.12 CFM (60Hz) — 50 LPM (50Hz), 60 LPM (60Hz)
• Voltage: 230 V (50Hz), 230 V (60Hz)
• Max Pressure: 120 psi / 8.27 bar
• Flow @ Max Pressure: 1.13 CFM (50Hz) / 32.0 LPM ; 1.31 CFM (60Hz) / 37.1 LPM
• Phase: Single Phase
• Country of Origin (COO): US
• Sound Level: 45 dB(A)
• Plug Type: TP-52 16A EU
• Dimensions: 15 in L x 15 in W x 18.88 in H (381.0 mm x 381.0 mm x 479.4 mm)
• Designed duty cycle: 50% duty cycle
• Typical applications: dental & medical equipment, laboratory instruments, industrial machinery, food & beverage processing, automotive
• Regulatory: N/A
