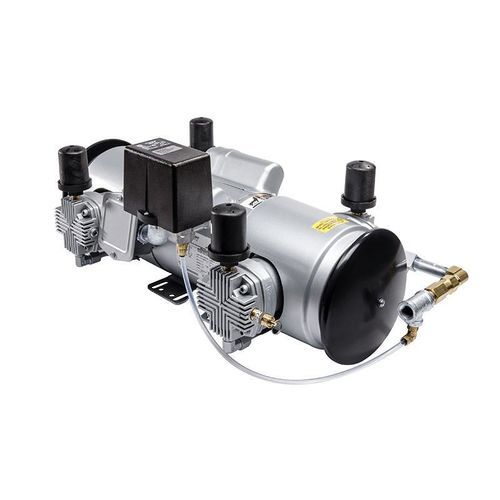

Reciprocating compressor 7L-7H

airelectrically-poweredstationary

Overview
Systems powered by our mid-compact 7L-8L-8H 4-cylinder piston compressors deliver pressurized air across a broad range of pressures and flow rates. The 7LDE-46S-M750X is an oil-free, tank-mounted reciprocating compressor designed for applications requiring clean, contaminant-free air and reliable continuous operation.

Highlights

• Oil-free operation: Delivers clean air without oil contamination
• High pressure capability: Maximum pressure 50 psi (3.45 Bar) suitable for demanding, consistent-pressure tasks
• Tank-mounted options: Compatible with tank sizes from 2 to 60 gallons for integrated storage
• Riser mount available: Elevates unit for simplified installation and maintenance access

Key Product Identifiers
Item #: 7LDE-46S-M750X
Series: Piston Systems
Description: RECIPROCATING COMPRESSOR

Technical summary (table)
HP: 1.5
Amps (60Hz): 20/10
Weight: 73 lb / 33 kg
Open Flow (60Hz): 10.2 cfm / 289 LPM
Voltage (60Hz): 115 / 208-230 V
Regulatory: cULus
Max Pressure: 50 psi / 3.45 Bar
Phase: Single Phase
Country of Origin: USA
Flow @ Max Pressure (60Hz): 7.8 cfm / 220.9 LPM
Sound Level: 81 dBA
Dimensions (in): 25.26 L x 12.5 W x 9.62 H
Dimensions (mm): 641.6 L x 317.5 W x 244.3 H

Specifications / Technical details

• Model / SKU: 7LDE-46S-M750X
• Series: Piston Systems
• Product type: Reciprocating compressor (oil-free)
• Power (HP): 1.5
• Amps (60Hz): 20/10
• Open flow (60Hz): 10.2 cfm (289 LPM)
• Flow at max pressure (60Hz): 7.8 cfm (220.9 LPM)
• Max pressure: 50 psi (3.45 Bar)
• Voltage (60Hz): 115 / 208-230 V
• Phase: Single phase
• Weight: 73 lb (33 kg)
• Sound level: 81 dBA
• Dimensions: 25.26 in L x 12.5 in W x 9.62 in H (641.6 x 317.5 x 244.3 mm)
• Regulatory: cULus
• Country of Origin: USA
