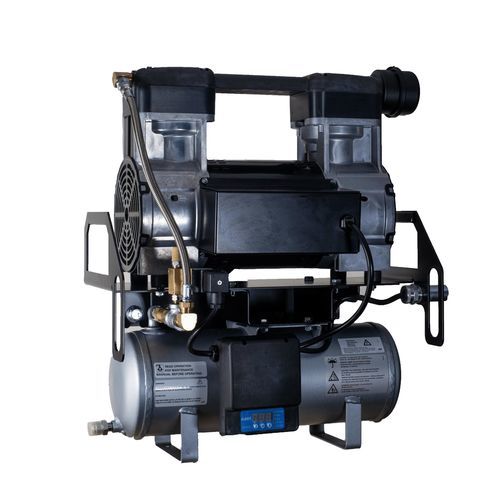

Reciprocating compressor 120R-200S

rocking pistonairelectrically-powered

Description: Systems powered by Gast 120R compressors deliver higher-pressure performance with significantly reduced sound levels. Engineered for maximum airflow with lower current draw, the 120R provides high power in a compact footprint. Constructed from corrosion-resistant materials and operating oil-free, it supplies clean, contaminant-free compressed air across a wide range of pressures and flow rates.

Series / Item: Item # 120R-200S — Series: Rocking Piston Systems — Description: Reciprocating compressor

Highlights:

• Higher-Pressure Performance: Patented crossover chamber design regulates airflow to dampen sound and optimize output
• Basic Systems: Uncovered compressor and tank (sizes from 4 to 90 L) with filters, regulators and automatic drains
• Cabinet Systems: Fully enclosed compressor and tank (sizes from 4 to 40 L), reducing sound by 15%-20%, with temperature-controlled fans; includes filters, regulators and gauges; optional dryer systems
• High Pressure at Lower Amps: Elevated pressure output while minimizing current draw

Product Information:

• Country of Origin: USA
• Prop 65: Product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm

Technical specifications:

• Model (Commercial denomination): 120R-200S
• Series: Rocking Piston Systems
• Description: Reciprocating compressor (oil-free, corrosion-resistant materials)
• HP: 2 HP
• Amps: 8 A (50 Hz) / 10 A (60 Hz)
• Voltage: 230 V (50 Hz) / 230 V (60 Hz)
• Phase: Single phase
• Open Flow: 9 cfm (50 Hz) / 11 cfm (60 Hz) — Metric: 255 LPM (50 Hz) / 311 LPM (60 Hz)
• Flow @ Max Pressure: 5 cfm (50 Hz) / 5.5 cfm (60 Hz) — Metric: 141.6 LPM (50 Hz) / 155.7 LPM (60 Hz)
• Max Pressure: 125 psi — Metric: 8.62 bar
• Sound Level: 83 dBA
• Weight: 94 lb (43 kg)
• Dimensions: 20.24 in L x 13.16 in W x 23.03 in H — Metric: 514.1 x 334.3 x 585.0 mm
• Regulatory: N/A
• Country of Origin (COO): US
