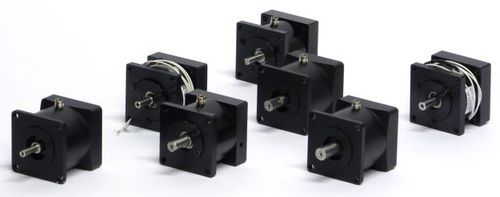

Disc brake MAB23 series
electromagneticNEMAfor servo motors

disc brake
disc brake
disc brake
disc brake
disc brake
disc brake
disc brake
Add to favorites
Compare this product


Characteristics

Type
disc
Operation
electromagnetic
Other characteristics
NEMA, for servo motors
Torque

0.5 Nm, 1.5 Nm
(0.3688 ft.lb, 1.1063 ft.lb)

Description

Electronic brake for all NEMA23 motors The electronic brake is designed to be mounted on step- and servo motors, such as the MAC050, MAC095m, MAC140 or MAC141 series of integrated servo motors. Brake can also be used on MIS231,MIS232,MIS234 series of integrated stepper motors and MST23x stepper motors without build in controller. A high quality electro-magnetic brake is mounted inside the housing. The brake has zero backlash and no auditory noise. Holding torque can be 0,5 to 1,5Nm. It fits on all step- and servo motors with NEMA23 57x57mm flange and optional 6.35, 8, 10 and 11mm in and output shaft.The brake is used when it is desired to hold the motor shaft fixed at power off, or when the motor is used in a vertical linear application.When 24 VDC is connected, the brake will be deactivated and the motor can turn freely. It is recommended to use the brake only as a holding brake and not as an emergency brake.
