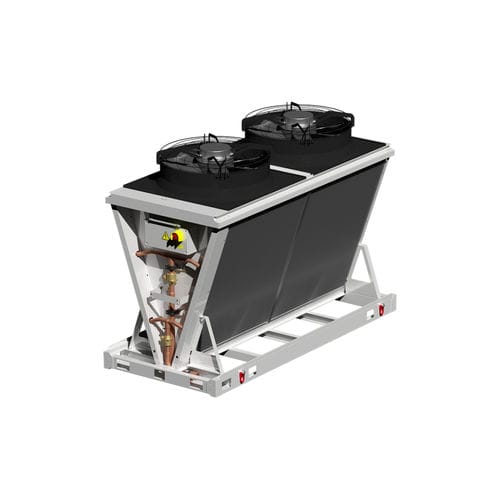

Axial condenser LCC series

ammoniaair-cooledadiabatic

AIR-COOLED CONDENSERS LCC SERIES High-performance V-shaped modular condensers with microchannel heat exchangers, suitable for HFC and HFO refrigerants, ammonia and carbon dioxide 100 – 800 kW HIGH-END, DEMAND-RESPONSIVE CONDENSERS FOR MISSION-CRITICAL APPLICATIONS Designed and optimized for a vast majority of refrigerants, including R410a, R134a, R1234ze and more, LCC series modular air-cooled condensers are equipped with brazed aluminium heat exchangers and electronically commutated (EC) fans. A wide range of options and accessories available for tailoring the customer solution, including adiabatic spray system, e-coating for condenser coil protection, automatic coil cleaning system, and BMS connectivity options. The LCC range is built as V-shaped condenser modules to minimize the footprint. Its modular construction allows each V-bank to be connected independently offering autonomous regulation. Electronically-Commutated Axial Fans Axial fans driven by EC-motors have high energy-saving potential in particular, under part-load, where efficiency losses are significantly lower than those for fans with asynchronous motors. In combination with low air-resistant coils, EC fans promote significant energy savings while remaining relatively quiet over the entire speed range. ​To fulfill the most demanding noise requirements, fans can be fitted with advanced diffusers.
