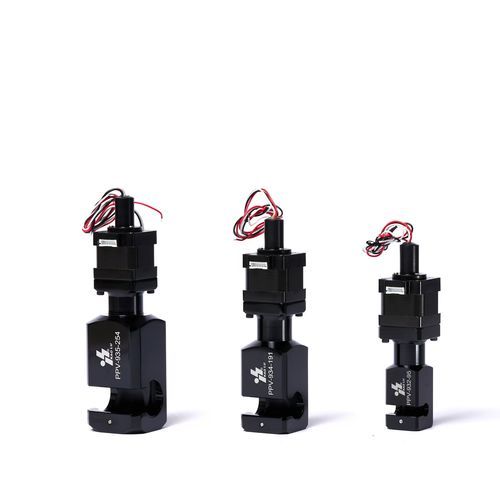

Pinch valve PPV

electrically-actuatedmixingfor control

Pinch valve works in a way to open or to close a fluid path in a flexible tube by squeezing or pinching the tube. With a proportional pinch valve, the shaft that pinches the tube is driven by a stepper motor, thus that the extent of pinching can be adjusted, which indirectly controls the fluid flow rate inside the tube. The advantage of using a pinch valve is that it has no contact with the fluid, making it an ideal option for biotechnology processing, food industry, dosing system, blood process/analytical, CIP and SIP process, and biopharmaceutical equipment. Our PPV series pinch valve is driven by the PM series driver that accept either analogue ( 0-10V or 4-20mA) or digital RS485 modbus signal.

Compatible with tube OD from 2 mm up to 35 mm

What is a Proportional Pinch Valve?
A Proportional Pinch Valve is a type of pinch valve that combines the characteristic and features of a pinch valve and a linear stepper motor. It is a great way to control fluid flow or fluid pressure in applications that emphasize sterile, clean, non-contact, avoid cross-contamination environment, such as

Biotechnology
Chemical Processing
Dispensing, Filling, & Mixing
Process Equipment
Bioreactors
Medical Devices
Pharmaceuticals
Life Sciences
Food Processing
In this article, we will start by introducing what type of proportional pinch valve KaoLu could offer, followed by the working principle, and when should you use a proportional pinch valve, and then conclude with what you should consider before making a decision on which valve to purchase.

Laboratory analysis
Chemical mixing and dispensing
Dosing system
Clinical and chemical analysis
Vending machine
Blood handling and analysis
