External cylindrical grinding machine KNG 5P expert

internal cylindricalfor gearswith rotary table

Product overview

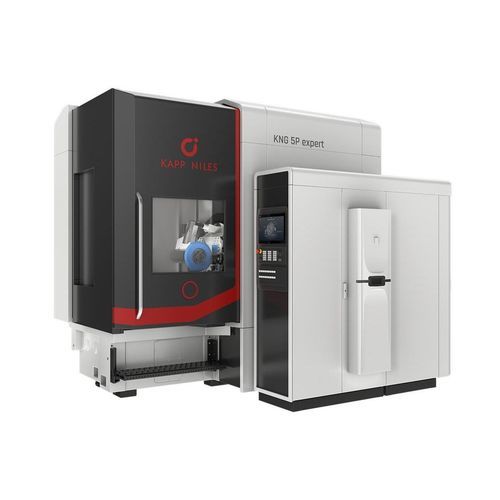

The KNG 5P expert is a gear grinding machine designed for precision machining of external and internal gears. The compact machine concept combines efficient setup with flexible production capability. The direct-driven grinding spindle accepts grinding wheels from 60 to 350 mm diameter and runs up to 9,500 rpm. The dressing spindle swivels to an ergonomically accessible position for quick tool changes. Five-axis interpolation via an open swivelling axis enables efficient, nearly twist-free double‑flank grinding. A generously dimensioned rotary table with electric direct drive and deep bore accommodates long shafts. A wide range of configurable options allows adaptation to varied applications.

Main features

• Precision machining of external and internal gears
• Compact design with high set-up efficiency
• Direct-driven grinding spindle; grinding wheel diameters 60–350 mm; spindle speed up to 9,500 rpm
• Swivelling dressing spindle for ergonomic dressing tool change
• 5-axis interpolation (open swivelling axis) enabling efficient, almost twist-free double‑flank grinding
• Generously dimensioned rotary table with electric direct drive and deep rotary table bore for long shafts
• Swivable tailstock, infinitely adjustable to tip pressure up to 2,000 N
• Capability to grind worms with pitch angles up to 45°
• Wide range of configurable options for varied applications

Technical data (table)
max. tip diameter: 500 (600) mm
max. workpiece length: 1,500 mm
module range: 0.5 - 25 mm
max. face width: 675 mm
swivel range of grinding head: -45 / +135 deg

Technical specifications

• Model: KNG 5P expert
• Application: External and internal gear profile grinding
• Grinding wheel diameter (usable): 60 – 350 mm
• Grinding spindle speed: up to 9,500 rpm
• Max. tip diameter: 500 (600) mm
• Max. workpiece length: 1,500 mm
• Module range: 0.5 – 25 mm
• Max. face width: 675 mm
• Swivel range of grinding head: -45° to +135°
• Tailstock: swivable, infinitely adjustable to tip pressure up to 2,000 N
• Rotary table: electric direct drive with deep bore for long shafts
• Dressing: swivelling dressing spindle for ergonomic tool change
• Axes: 5-axis interpolation (open swivelling axis) supporting double‑flank grinding
• Capability: worm grinding up to 45° pitch angle
