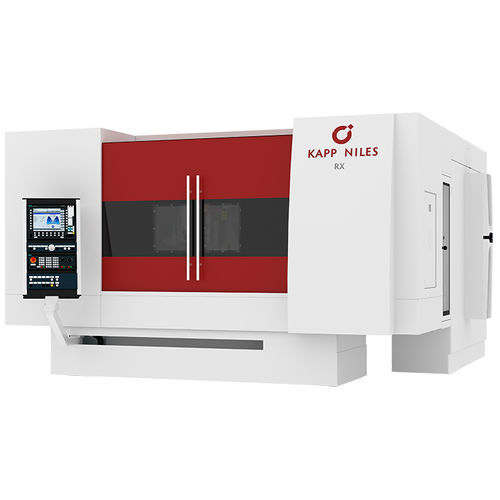

Rotor grinding machine RX series

CNC

The machines of the RX series are used for pre-finish and finish grinding of pre-profiled steel and cast iron screw rotors. Due to the innovative drive concept on the tool side, a maximum drive power of 46 kW is reached. Especially for roughing, this high performance results in extremely high stock removal rates and shortens machining times considerably. In combination with an optimally adapted tool technology, a highly productive and efficient working process will be guaranteed. Key features of the RX series Roughing and finishing in one set-up Integrated measuring device Rough machining is possible using continuous generating grinding max. outer diameter - 120 / 320 / 320 (400) mm max. workpiece length - 425 / 1,200 / 1,650 mm max. profile length - 220 / 550 / 850 mm max. profile width - 80 / 180 / 180 mm max. profile depth - 30 / 80 / 80 mm
