float level switch / for liquids / with alarm function / for tanks
1 series

Add to MyDirectIndustry favorites
Compare this product
float level switch / for liquids / with alarm function / for tanks float level switch / for liquids / with alarm function / for tanks - 1 series
{{requestButtons}}

Characteristics

  • Technology:

    float

  • Medium:

    for liquids

  • Other characteristics:

    with alarm function

  • Applications:

    for tanks

  • Process pressure:

    Max.: 200,000 Pa (29.01 psi)

    Min.: 0 Pa (0 psi)

  • Process temperature:

    Max.: 55 °C (131 °F)

    Min.: 0 °C (32 °F)

Description

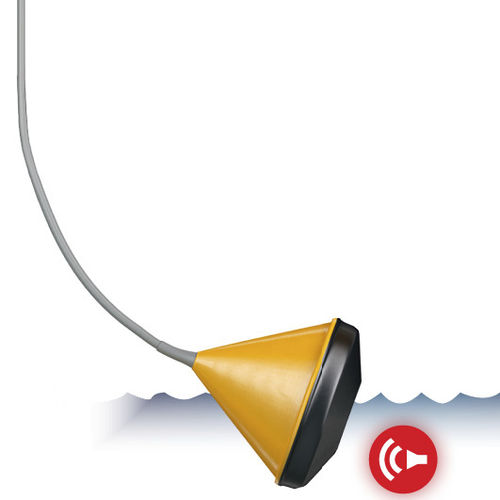

KARI FLOAT SWITCH
1C | 1H | 1L
The KARI float switch is a control device for magnetic valves or an alarm device that alerts the user at specified surface levels. Thanks to its large float casing (Ø 170 mm), the KARI float switch has a buoyancy that guarantees smooth, trouble-free operation under all conditions. SGS FIMKO Oy (the Finnish Electrical Inspectorate) has performed testing in accordance with the Low Voltage Directive (LVD) and approved the KARI float switch for use in non-flammable liquids at 250 volts.
