Hydraulic winch

electricchainmooring

Description

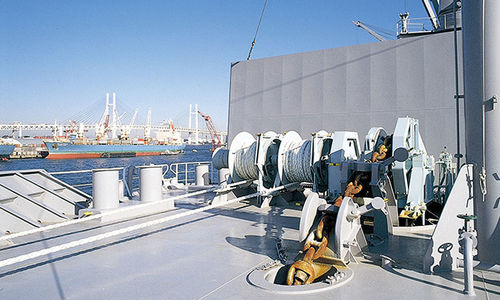

Hydraulic deck machinery for anchor handling and mooring operations featuring Kawasaki Silent System and Advanced Series options to reduce noise while meeting high-pressure requirements.

Features

• The Kawasaki Silent System significantly reduces operational noise for high-pressure deck machinery.
• Single main system and remote-control configuration support labour-saving in cargo handling and mooring operations.
• Electric variants use frequency control to lower power consumption and environmental impact.

Specifications

• Equipment types: Windlass, Mooring Winch
• Rated load: Windlass 61 to 766 kN (chain dia. Φ38 to Φ127); Mooring Winch 49 to 400 kN
• Rated speed: Windlass 9 m/min; Mooring Winch 15 m/min
• Systems: Hydraulic high-pressure system; Electric (frequency control) system
• Classification: NK, ABS, LR, DNV, BV, CCS, KR, CR

Applications

• Cargo vessels
• Oil tankers
• Ferries

Technical specifications

• Rated Load: Windlass 61–766 kN (chain dia. Φ38–Φ127); Mooring Winch 49–400 kN
• Rated Speed: Windlass 9 m/min; Mooring Winch 15 m/min
• Drive Systems: Hydraulic high-pressure; Electric (frequency control)
• Classifications: NK, ABS, LR, DNV, BV, CCS, KR, CR
