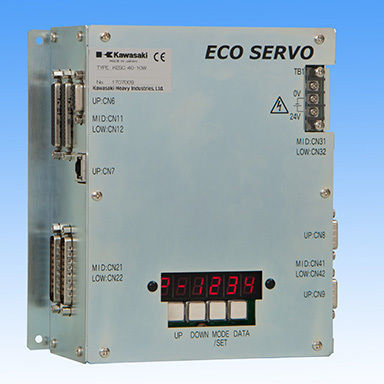

24-48 V DC servo controller KESC-40-10S

Product overview
The N-ECST controller performs high-accuracy control of actuators when paired with the ECO SERVO variable-speed hydraulic system. It calculates pump rotation speed from position, speed, pressure and flow commands received from the host controller and outputs rotation-speed commands to motor drivers.

Features

• Selectable 1-axis or 2-axis controller types
• High-performance control functions for precise actuator management
• Application software and maintenance functions to support system integration and service
• Communication network model line-up with CC-Link and EtherCAT (EtherCAT under development)

Specifications

• Product name/series: N-ECST
• Purpose: Servo controller for ECO SERVO variable-speed hydraulic system
• Control types: 1-axis or 2-axis
• Model examples: KESC-40-10S (1 axis), KESC-40-10W (2 axes)
• Control functions: Calculates pump rotation speed from position, speed, pressure and flow commands; outputs rotation-speed command to motor drivers
• Command-sensor interface: Position signal (analog/digital); Pressure signal (analog)
• Input power: +24 V (power capacity 30 W)
• Mass (approx.): 1.65 kg (1-axis), 1.8 kg (2-axes)
• Communication network options: CC-Link, EtherCAT (EtherCAT under development)

PR
The N-ECST controller addresses industrial machine requirements such as improved efficiency and energy saving by optimizing pump speed control and integration with host systems.

Download
N-ECST leaflet (PDF, 2.8 MB) available for product documentation.

Applications

• Press machines
• Plastic machinery & die casting
• Metal plants
• Waste treatment
• Oceanic machines

Technical characteristics / specifications

• Product name/series: N-ECST
• Purpose: Servo controller for ECO SERVO variable-speed hydraulic system
• Control types: Selectable 1-axis or 2-axis
• Model examples: KESC-40-10S (1 axis), KESC-40-10W (2 axes)
• Command-sensor interface: Position signal (analog/digital); Pressure signal (analog)
• Input power: +24 V (power capacity 30 W)
• Mass (approx.): 1.65 kg (1-axis), 1.8 kg (2-axes)
• Communication network options: CC-Link, EtherCAT (EtherCAT under development)
• Available application software and maintenance functions for system integration
