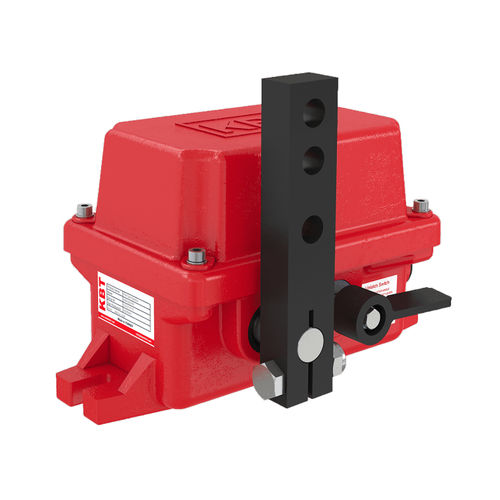

Pull wire switch NSR22-PR series

cable-pullSPDTdust-proof

• It is resistant to blow and heavy conditions. • 2x50m Right and Left Rope Connection Distance • 3NO / 3NC Snap Action Contact Structure • It has CE and EAC Standards. NSR22-PR Pull Cord Switch(also called a rope switch)is a conveyor belt safety accessory designed to check and shut down conveyor systems in the event of a conveyor belt misalignment. NSR22-PR series of products do not require maintenance. Materials used: The body structure is cast aluminum and is protected with oven paint. Shaft mechanisms are made of stainless steel and Arm mechanisms are made of hard plastic. Uses and Applications: It can be mounted on the application area with a steel rope. Also, it can operate by moving on one side or on both sides of a conveyor. If the ropes are pulled from one direction, the system is locked and the switches go to the stop position, then it is returned to normal with Manual reset. Safety Features: The heavy-duty rugged design makes them suitable for most industrial applications. General Description: Dimensions are 2x50 meters standard distance to the right and left. It has a 1NO + 1NC contact structure in the standard. Available modifications as per request: - The alarm and signal lights can be added to all models - It can be used at the longer distances - 3NO + 3NC contact structure can be applied
