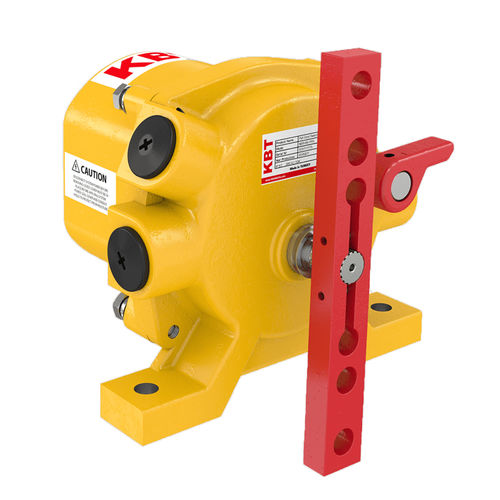

Pull cord switch NSR66-PR3

SPDTdust-proofrugged

• It is resistant to blow and heavy conditions. • 2x50m Right and Left Rope Connection Distance • 2NO / 2NC Snap Action Contact Structure • It has CE and EAC Standards. • Suitable assembly structure in USA field plant NSR66-PR3 Pull Cord Switch is a conveyor belt safety accessory designed to interlock with conveyor shutdown systems in the event of maintenance or emergency. Materials used: The robust die-cast aluminum housing with an epoxy-based powder coating and all stainless-steel hardware make them suitable for most heavy industrial applications. Uses and Applications: When force is applied to the cable, the actuator arm rotates and locks in the alarm position. This activates two 2 SPDT microswitches and the manual lockout. The switch can be reset by pressing down on the arm and releasing the manual reset lever. Pull cord switches are mounted on the walkway side or anywhere a person can access the moving parts of a conveyor. Safety Features: The switches are connected by a safety cable that runs between the switch arms and can either be attached to the outer hole 6,80 Kg pull force or the second inner hole 11,34 Kg pull force. The cables are secured by cable clamps after they are looped through the switch hole. The ends of the cable can either be a switch or a conveyor eye bolt secured with a clamp. To prevent the pull cable from sagging, conveyor standoffs (eye bolts) are mounted every 3 meters. The distance between switches is dependent on the variations in temperature of the environment.
