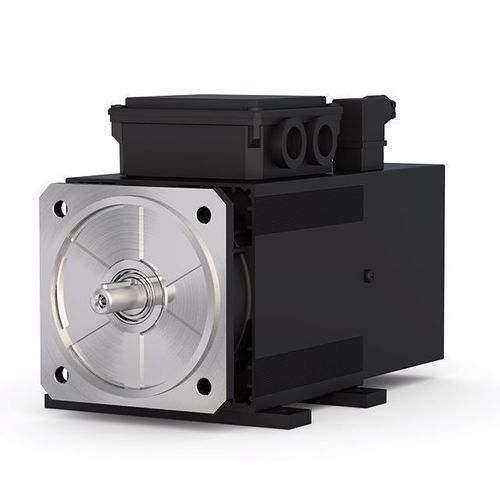

AC motor AL4

asynchronousinduction3-phase

Overview
The AL4 series from KEB is a family of 3‑phase asynchronous (squirrel‑cage) motors specifically designed for inverter operation in accordance with IEC 60034‑25. The series offers a 4‑pole configuration across five frame sizes covering a power range of 0.37 kW to 55 kW and is available in protection classes IP54 and IP23.

Manufacturer / Design
Motors are manufactured by Brusatori for KEB. The AL4 design provides an optimized power‑to‑size ratio for induction motors and stable dynamic behaviour during speed and torque changes over a wide speed range. Standard configurations are available and the series can be adapted to specific customer requirements. The design is suitable for machine and system applications and can serve as a retrofit replacement for DC drives.

Drive Integration
The AL4 motors are intended for integration with inverter drives such as the COMBIVERT F6. Systems can be supplied encoderless or with encoder; pre‑assembled encoder cables are available on request. Motor and drive are harmonised to support high efficiency and simplified commissioning.

Highlights

• Asynchronous servo motors designed for inverter operation
• Good dynamic response and controllability over a wide speed range
• Compact footprint for power range 0.37 kW to 55 kW
• Compatible with COMBIVERT F6 drive controllers for servo system configurations
• Suitable for general machine and system applications; option for DC retrofit

Technical Data (summary table)
Height/size | Rated speeds n_nom [rpm] | Nominal torques T_n [Nm]
71/C | 1,300 … 3,000 | 2.5 … 4
80/D | 1,300 … 2,900 | 5 … 8
90/E | 1,300 … 3,000 | 10 … 29
100/G | 500 … 3,000 | 3 … 41
132-IP54/H | 1,100 … 3,200 | 72 … 180
132-IP23/H | 1,100 … 3,200 | 94 … 244

Properties (summary)
Design | IM B5 for 71/C, 80/D, 90/E
| IM B35 for 100/G, 132/H
Cooling | IC 416 (IP54); IC 06 (IP23) according to IEC EN 60034‑6
Shaft | with feather key (option: shaft without feather key)
Balancing grade | G 2.5 according to ISO 1940‑1 (with half key CEI 2‑23)
Protection class | IP54 for 71/C, 80/D, 90/E, 100/G, 132/H; IP23 for 132/H
Winding insulation | Class H according to CEI EN 60034‑1
Temperature class | Class F according to CEI EN 60034‑1
Thermal protection | Closed contact 140 ±5 °C, max. 250 Vac / 6 Aac
Temperature ranges | Operation: +5 °C to +40 °C; Storage: -20 °C to +70 °C
Mounting position | all
Colour | black RAL 9005

Options

• Design IM B3 / B35 / B14 for 71/C, 80/D, 90/E
• Shaft without feather key
• Roller bearing for 100/G and 132/H
• Spring‑applied holding brake
• Special winding – adapted voltage / frequency
• Oil seal A‑side
• Incremental encoder, programmable (from 0 up to 10,000 ppr)
• Sinus‑Encoder 1 Vpp – 1024 ppr
• Absolute encoder Singleturn / Multiturn (Hiperface)
• Resolver 2‑pole, 7 Vrms, transmission ratio 0.5

Documentation
Catalogue and product manuals are available for the AL4 series (catalogue for AC servo motors series AL4 and Brusatori manual).

Characteristics / technical specifications

• Product family / series: AL4 series (AC servo / asynchronous motors)
• Intended for inverter operation (IEC 60034‑25)
• 3‑phase asynchronous motors with squirrel‑cage winding
• 4‑pole design
• Power range: 0.37 kW to 55 kW
• Protection classes: IP54 and IP23 (depending on version)
• Cooling: IC 416 for IP54 versions, IC 06 for IP23 versions
• Rated speeds and nominal torques by size: see Technical Data table above
• Winding insulation class H; temperature class F
• Balancing grade: G 2.5 (ISO 1940‑1)
• Thermal protection: closed contact 140 ±5 °C (max. 250 Vac / 6 Aac)
• Operating temperature: +5 °C to +40 °C; Storage: -20 °C to +70 °C
• Mounting positions: all; flange/foot designs IM B5 / IM B35 / optional IM B3 / B14
• Optional encoders (incremental, sinus, absolute Hiperface), resolver options and holding brake
• Manufacturer of motors: Brusatori (produced for KEB)
