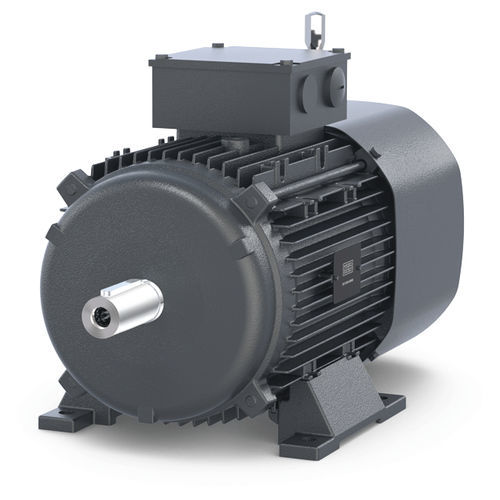

Asynchronous motor D series

three-phaseinduction690 V

Product overview
KEB three-phase asynchronous motors (series DM / DA) are universal low-voltage motors designed for mains operation (IE2/IE3) or inverter control. Available as 4-pole versions with a modular design for adaptation to harsh industrial environments and tailored system solutions.

Highlights

• Wide range of voltages and international approvals
• Prepared for use with KEB COMBIVERT F6 and S6 drives
• Modular and individually configurable
• Motors MADE IN GERMANY

Technical data - Power when operating at 50 Hz 4-pole IE2 / IE3
Size | Power
DM63 | 0.18 kW
DM71 | 0.37 kW
DM80 | 0.75 kW
DM90 | 1.5 kW
DM100 | 3 kW
DM112 | 4 kW
DM132 | 7.5 kW
DM160 | 15 kW
DA180 | 22 kW
DA200 | 30 kW
DA225 | 45 kW

Brakes
Spring-applied brakes COMBISTOP
Voltage: 230 V AC, 400 V AC or 24 V DC
Max. torque [Nm] by frame size
B02 | 5 Nm
B03 | 10 Nm
B04 | 20 Nm
B05 | 36 Nm
B06 | 70 Nm
B07 | 100 Nm
B08 | 150 Nm
B09 | 250 Nm
B10 | 500 Nm

Electromagnetic brakes COMBINORM B
Voltage: 24 V DC
Torque [Nm] by size
CN06 | 7 Nm
CN07 | 15 Nm
CN08 | 30 Nm
Other versions and custom options available on request

Encoder options

• Incremental encoder: 5 to 5,000 ppr
• Signal types: TTL and HTL
• SinCos encoders with functional safety options
• Absolute encoders: BiSS C, SSI

Fan / Ventilation options

• Integral fan
• Forced ventilation
• Closed / without fan
• Metal fan, high-inertia fan

Available voltages and approvals / certificates
Δ/Y 230/400 V 50 Hz // Y 460 V 60 Hz → Europe: CE
Δ/Y 400/690 V 50 Hz // Δ 460 V 60 Hz → North America: UL (C+US) & EE
Δ/Y 220/380 V 60 Hz → China: CCC & CEL
Δ/Y 290/500 V 50 Hz → other regions on request
Y 575 V 60 Hz → ATEX possible

Options
Modular options for customer-specific configurations; coordinated system integration with inverters (motor + inverter solutions) available.

Technical specifications

• Series: DM / DA (three-phase asynchronous motors)
• Pole count: 4-pole
• Power range: 0.18 kW to 45 kW (depending on frame size)
• Efficiency: IE2 / IE3 on mains operation; inverter-compatible
• Prepared for KEB COMBIVERT F6 and S6 drives
• Brake options: COMBISTOP (spring-applied), COMBINORM (electromagnetic)
• Encoder options: incremental (5–5000 ppr) TTL/HTL, SinCos (safety-capable), absolute BiSS C / SSI
• Fan variants: integral, forced, closed, metal/high-inertia
• Voltages / Approvals: CE, UL (C+US), CCC, CEL, ATEX (selectable)
• Design: robust for harsh environments; modular and configurable
• Manufacturing: Made in Germany
