Servomotor gear-motor S_D/ S_TA series

wormhelical gearright angle

Product overview
Worm gear units (worm geared motors) provide high gear reduction in a compact, angular arrangement suitable for low-speed applications such as mixers and conveyor drives. The S-series modular design covers sizes S0–S4 and allows combination with various motor adapters or free input shafts to match installation requirements.

Applications and motor adapters

• Possible motor adapters for IEC motors
• NEMA motors
• Servo motors

Highlights

• Multiple housing and output-shaft versions
• Double-sided output shaft option
• Reinforced bearings
• Improved sealing for reduced leakage and noise

Technical data (summary table)
Gear unit | T2 [Nm] | Gearing (multi-stage) | P1 [kW] | Drive shaft / hollow shaft (H)
S0 | 55 | 5.09 … 189.00 | 0.75 | Ø 20 x 40, H Ø 20
S1 | 162 | 7.00 … 168.00 (9,007.5) | 1.5 | Ø 25 x 50, H Ø 25
S2 | 295 | 6.85 … 207.20 (13,901) | 3 | Ø 30 x 60, Ø 35 x 70, H Ø 30, H Ø 35
S3 | 540 | 13.33 … 271.60 (18,745) | 4 | Ø 40 x 80, H Ø 40
S4 | 1,160 | 14.07 … 247.58 (20,360) | 7.5 | Ø 50 x 100, H Ø 50

Types of construction / options
Available constructions include foot-mounted, shaft-mounted (with or without torque arm), flange-mounted, and combinations with additional foot area. Drive shaft options include hollow shaft (with or without shrink disc) and solid output shaft variants.

Examples / product variants

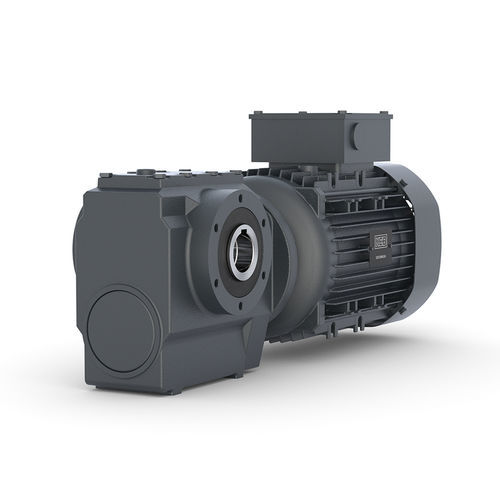

Illustrative designation: Helical worm geared motor S22B DM90LB4 (example).

Characteristics / technical specifications

• Torque range by size: 55 Nm (S0) up to 1,160 Nm (S4)
• Maximum input power examples: up to 7.5 kW (S4)
• Gearing ranges per size as shown in table
• Motor power compatibility: approx. 0.12 kW up to 7.5 kW (modular system)
• Motor adapter compatibility: IEC, NEMA and servo motors
• Housing and shaft options: multiple housing versions, hollow-shaft (H) and solid-shaft variants, shrink-disc option
• Design features: reinforced bearings and improved sealing for low-noise operation
