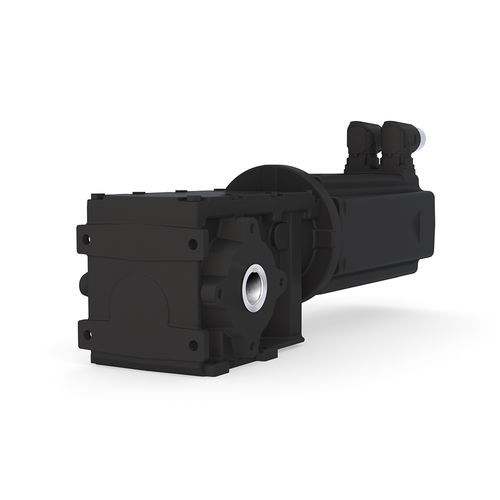

Asynchronous gear-motor K_D / K_TA series

servomotorhelical gearspiral bevel

Product overview
Helical bevel (angular) gear units Series K provide torque transmission for right-angle drive arrangements. They are designed for compact installation where space is limited and deliver high efficiency across a wide torque range (approx. 55–12,200 Nm). Combined with suitable drives, input powers up to 45 kW can be achieved. Double-sided output shafts and multiple housing variants are available to suit various industrial mounting requirements.

Motor adapters

• IEC motors
• NEMA motors
• Servo motors

Highlights

• Multiple output shaft and housing versions
• Double-sided output shaft option
• Reinforced bearings for heavy loads
• Improved sealing for harsh environments
• Low gear backlash for precise positioning

Technical data (extract)
K0 | T2 = 58 Nm | Ratio 3.56 … 44.20 | P1 = 0.75 kW | Output Ø 20 x 40, H Ø 20
K1 | T2 = 110 Nm | Ratio 3.38 … 54.90 (3,959.5) | P1 = 1.5 kW | Output Ø 25 x 50, H Ø 25
K2 | T2 = 205 Nm | Ratio 5.07 … 102.27 (5,483.4) | P1 = 3 kW | Output Ø 25 x 50, H Ø 25
K3 | T2 = 400 Nm | Ratio 5.14 … 120.13 (8,059.3) | P1 = 4 kW | Output Ø 30 x 60, Ø 35 x 70, H Ø 30, H Ø 35
K4 | T2 = 745 Nm | Ratio 5.69 … 151.92 (10,485) | P1 = 7.5 kW | Output Ø 40 x 80, H Ø 40
K5 | T2 = 1,430 Nm | Ratio 5.69 … 138.94 (11,426) | P1 = 15 kW | Output Ø 50 x 100, H Ø 50
K6 | T2 = 2,550 Nm | Ratio 6.35 … 160.53 (13,818) | P1 = 22 kW | Output Ø 60 x 120, H Ø 60
K7 | T2 = 4,880 Nm | Ratio 7.29 … 183.21 (14,283) | P1 = 30 kW | Output Ø 75 x 140, H Ø 70
K8 | T2 = 7,960 Nm | Ratio 8.11 … 144.68 (16,285) | P1 = 45 kW | Output Ø 90 x 170, H Ø 90
K9 | T2 = 12,200 Nm | Ratio 8.22 … 137.36 (19,466) | P1 = 90 kW | Output Ø 110 x 210, H Ø 100

Gear unit versions

• Foot-mounted — K_A
• Shaft-mounted (plug-on) — K_B
• Shaft-mounted with torque arm — K_BT1
• Flange-mounted — K_C
• Shaft-mounted plus foot area — K_D
• Flange-mounted plus foot area — K_E

Output shaft options

• Hollow shaft (standard)
• Solid output shaft — designation: V
• Hollow shaft with shrink disc — designation: S

Technical specifications

• Torque range: approx. 55 to 12,200 Nm
• Input power: up to 45 kW depending on size and configuration
• Right-angle gear arrangement with high efficiency
• Multiple mounting and shaft variants for flexible integration
• Available motor adapters for IEC, NEMA and servo motors
• Design features: reinforced bearings, improved sealing, low backlash
