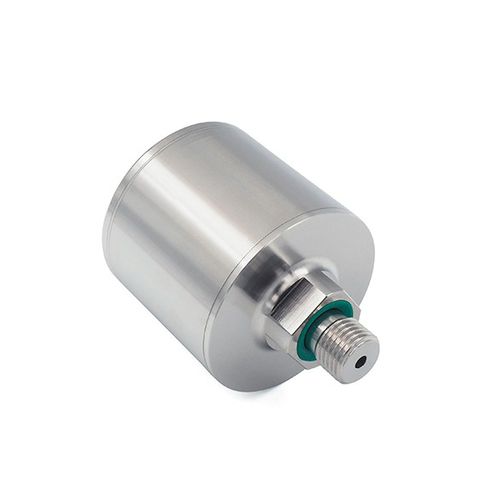

Differential pressure transmitter PD-41X
capacitive4-20 mA0-10 V

Differential pressure transmitter - PD-41X - KELLER Pressure AG - capacitive / 4-20 mA / 0-10 V
Differential pressure transmitter - PD-41X - KELLER Pressure AG - capacitive / 4-20 mA / 0-10 V
Differential pressure transmitter - PD-41X - KELLER Pressure AG - capacitive / 4-20 mA / 0-10 V - image - 2
Differential pressure transmitter - PD-41X - KELLER Pressure AG - capacitive / 4-20 mA / 0-10 V - image - 3
Add to favorites
Compare this product
Go to the KELLER Pressure AG website for more information

Characteristics

Pressure type
differential
Technology
capacitive
Output
4-20 mA, 0-10 V, voltage output, RS-485, 2-wire, 3-wire
Supply voltage
15VDC, 8VDC
Process connection
G 1/4
Other characteristics
digitally compensated
Pressure range

Min.: 0 bar
(0 psi)

Max.: 0.3 bar
(4.35 psi)

Precision

0.1 %

Long-term stability

0.1 %

Process temperature

Min.: -20 °C
(-4 °F)

Max.: 80 °C
(176 °F)

Description

The capacitive pressure transmitters of the PD-41X series are designed for measuring differential pressure values in the mbar and µbar range. They use digital compensation with a mathematical model to achieve an accuracy of 0,1 %FS. In addition to the digital RS485 interface, the X-line transmitters have a rangeable analog current or voltage output.
