Relative pressure transmitter 10LHPX seriespiezoresistiveanalogRS-485
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Technology
- piezoresistive
- Output
- analog, RS-485, 2-wire, 3-wire
- Supply voltage
- 32VDC, 8VDC
- Material
- stainless steel
- Applications
- for OEM
- Other characteristics
- compact, OEM, high-overpressure
- Pressure range
Max.: 1,000 bar
(14,503.77 psi)Min.: 0 bar
(0 psi)- Precision
0.05 %
- Long-term stability
0.05 %, 0.1 %
- Process temperature
Max.: 150 °C
(302 °F)Min.: -55 °C
(-67 °F)
Description

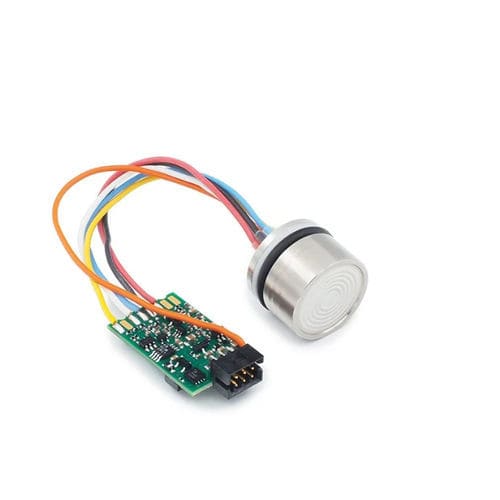

The OEM high pressure transmitters in the Series 10LHPX by KELLER Pressure are a combination of a pressure transducer from the Series 10LHP and the tried and tested X-line of electronics. Both temperature dependence and non-linearity are precisely compensated for in the microcontroller by means of a mathematical model, thereby achieving the highest degree of accuracy.
The 10LHPX owes its versatility to its compact design and robust stainless steel housing, which mean it can be used in a wide range of OEM applications. The Series 10LHPX is the high-pressure version of the Series 10LX.
