RS-485 pressure transmitter 20SX
4-20 mA0-10 Vthreaded

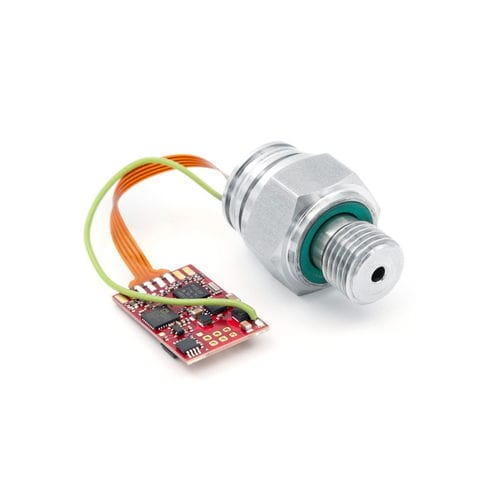

RS-485 pressure transmitter - 20SX - KELLER Pressure AG - 4-20 mA / 0-10 V / threaded
RS-485 pressure transmitter - 20SX - KELLER Pressure AG - 4-20 mA / 0-10 V / threaded
RS-485 pressure transmitter - 20SX - KELLER Pressure AG - 4-20 mA / 0-10 V / threaded - image - 2
RS-485 pressure transmitter - 20SX - KELLER Pressure AG - 4-20 mA / 0-10 V / threaded - image - 3
Add to favorites
Compare this product
Go to the KELLER Pressure AG website for more information

Characteristics

Output
RS-485, 4-20 mA, 0-10 V
Mounting
threaded
Material
stainless steel
Applications
for OEM, for test and process engineering, for hydraulic applications, for pneumatic applications, process
Other characteristics
digitally compensated, high-accuracy, temperature-compensated, OEM, precision, compact
Pressure range

Max.: 1,000 bar
(14,503.77 psi)

Min.: 0.3 bar
(4.35 psi)

Precision

0.05 %

Description

The Series 20SX is a compact pressure transmitter head with threaded connection designed for OEM integration. Combining the proven 20S transducer element with X‑Line electronics, the Series 20SX delivers very high long‑term stability, high overload resistance and microcontroller‑based compensation of temperature dependence and non‑linearity for maximum accuracy. The compact stainless steel housing simplifies installation in demanding OEM environments.

Key features
  • Very high long‑term stability
  • High overload resistance
  • Microcontroller‑based compensation of temperature dependence and non‑linearity for maximum accuracy and narrow Total Error Band (TEB)
  • Compact stainless steel housing for flexible OEM integration


Technical specifications
  • Pressure ranges: 0…0.3 to 0…1000 bar
  • Accuracy: ± 0.05 %FS
  • Total Error Band (TEB): ± 0.1 %FS @ -10…80 °C
  • Interfaces / outputs: RS485, 4…20 mA, 0…10 V
  • Dimensions: HEX22 x 79.2…119 mm
  • Electronics: X‑Line electronics with microcontroller‑based mathematical compensation


Applications
  • OEM integration for hydraulic and pneumatic systems
  • Test & measurement and calibration benches
  • Industrial machinery and process control
  • Mobile hydraulics and off‑road equipment
  • Laboratory and R&D applications requiring compact, high‑accuracy sensors
