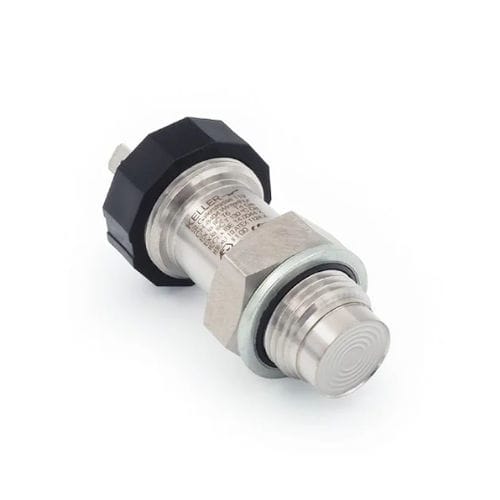

Absolute pressure transmitter 25Y-Ei series
piezoresistive4-20 mA0-10 V

Absolute pressure transmitter - 25Y-Ei series - KELLER Pressure AG - piezoresistive / 4-20 mA / 0-10 V
Absolute pressure transmitter - 25Y-Ei series - KELLER Pressure AG - piezoresistive / 4-20 mA / 0-10 V
Absolute pressure transmitter - 25Y-Ei series - KELLER Pressure AG - piezoresistive / 4-20 mA / 0-10 V - image - 2
Add to favorites
Compare this product
Go to the KELLER Pressure AG website for more information

Characteristics

Pressure type
absolute
Technology
piezoresistive
Output
4-20 mA, 0-10 V
Mounting
flush diaphragm
Process connection
G 1/2
Fluid
for gas
Protection level
intrinsically safe
Other characteristics
male
Pressure range

Max.: 1,000 bar
(14,503.77 psi)

Min.: 0 bar
(0 psi)

Precision

0.25 %

Long-term stability

0.1 %, 0.2 %

Process temperature

Max.: 100 °C
(212 °F)

Min.: -40 °C
(-40 °F)

Description

The pressure transmitters of the 25Y-Ei series with a front-flush separating diaphragm are designed for elevated requirements in industrial applications and are supplied with a G1/2" male pressure port. Thanks to its modular concept, this series is highly flexible and makes it possible to realise customer-specific requirements in very little time. The sophisticated compensation circuit makes it possible to specify a narrow total error band. Intrinsically safe – suitable for use in explosive atmospheres.
Go to the KELLER Pressure AG website for more information
