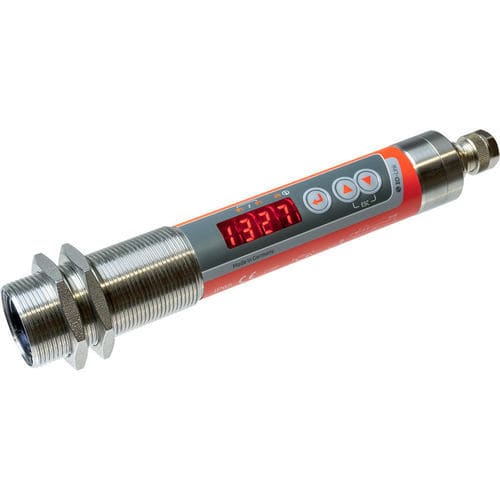

Infrared thermometer CellaCombustion PK 62

near-infraredwith LED display°F

Product overview
The CellaCombustion PK 62 is an infrared pyrometer for non‑contact temperature measurement of sooty flames in coal‑fired power stations and incineration plants. Using the two‑colour method, it detects near‑infrared radiation at two wavelengths from soot particles and applies a dedicated algorithm to compensate for wavelength‑dependent emissivity and flame optical density. Flame temperature data can be used to control burnout, reduce pollutant emissions and minimize slagging of combustion‑chamber walls.

Smart function / Vitality indicator
The CellaTemp® PK series incorporates a vitality indicator (SMART): a self‑monitoring system that continuously records operating data and, as part of preventive maintenance, signals the optimal time for service checks and calibration depending on operating conditions.

Special features

• Measuring range 700 to 1,700 °C
• Universally configurable switching outputs
• High optical resolution with precision lenses
• IO‑Link interface (V1.1.3)
• All parameters adjustable via sensor pushbuttons or plant interface
• 2 x switching outputs PNP open collector
• Simple mounting via M30 central thread
• Large, bright 4‑digit red LED display

Technical Data - Measurement parameters
Measuring range: 700 - 1700 °C
Sensor: Double photodiode
Spectral range: 0.8 / 1.05 µm
Response time t90: ≤ 10 ms (T > 650 °C)
Measurement uncertainty: 1 % of temperature reading [°C]
Repeatability: 2 K
Temperature coefficient: 0.05 %/K
Resolution current output: 0.1 K + 0.005 % of selected span
Resolution interface: 0.1 K
Resolution display: 1 K

Technical Data - Electrical parameters
Analog output: 0(4)–20 mA, linear, scalable
Resistance (analog): ≤ 500 Ω
Switching outputs: 2 x PNP open collector 24 V DC, 150 mA max each
Test input: 10–34 V DC (acc. IEC 61131‑2)
Interface: IO‑Link V1.1.3
Power supply: 18–32 V DC
Current consumption: ≤ 50 mA at 24 V DC

Technical Data - Features
Display: 4‑digit red LED, digit height 8 mm
Status display: 3 x LED
Control elements: 3 buttons

Technical Data - General parameters
Connection: M12, 5‑pin (A‑coding)
Ambient temperature: 0 - 65 °C
Storage temperature: -20 - +80 °C
Permissible humidity: ≤ 95 % r.H. non‑condensing
Dimensions: Ø 30 x 210 mm (without plug)
Housing: Stainless steel V2A (1.4305)
Protection class: IP 65 (DIN 40050)
Weight: approx. 0.4 kg

Technical Data - Adjustable parameters
Analog output scaling (0/4–20 mA), ratio correction, transmission compensation for protective glass, damping/time constant, max value hold time, operating mode/source, switching point and delay, temperature correction via interpolation points (X/Y), vitality indicator settings, service parameters, factory reset, key lock, display options, temperature unit °C/°F, temperature simulation

Technical Data - Functions
Overtemperature signal (internal temp > 75 °C), service function (measured‑value simulation), DTD (Discontinuous Temperature Detection) for intermittent processes, diagnostic functions (reverse polarity, overload, wrong supply voltage), reverse‑polarity protection on power/analog/switch outputs

Scope of delivery
Infrared pyrometer CellaCombustion PK, short manual, 2 fixing nuts

Software
SW 50 (IO‑Link software)

Notes
Typical target size at 1.5 m focus distance: 21 mm. Item No.: 1125231.

Technical specifications

• Model: CellaCombustion PK 62
• Measuring range: 700 - 1700 °C
• Spectral range: 0.8 / 1.05 µm
• Response time (t90): ≤ 10 ms (T > 650 °C)
• Measurement uncertainty: 1 % of reading
• Repeatability: 2 K
• Target/spot size: 21 mm (focus distance 1.5 m)
• Measuring principle: Two‑colour
• Analog output: 0(4)–20 mA (scalable)
• Switching outputs: 2 x PNP open collector (24 V DC, 150 mA max)
• Interface: IO‑Link V1.1.3
• Power supply: 18–32 V DC
• Display: 4‑digit red LED
• Housing: Stainless steel V2A (1.4305)
• Protection class: IP 65
• Dimensions: Ø 30 x 210 mm
• Weight: approx. 0.4 kg
• Item No.: 1125231
