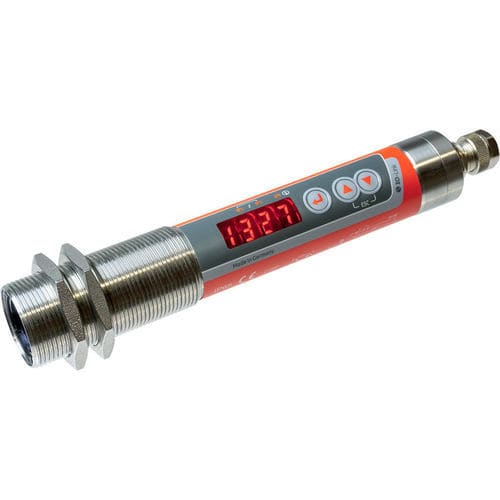

Infrared thermometer CellaCombustion PK 73

probewith LED display°C

Product description:
The CellaCombustion PK 73 is an industrial infrared pyrometer designed to measure hot combustion gases at a wavelength where combustion gas components present high optical density. It is intended for large combustion plants such as waste incineration facilities, coal-fired power plants and other industrial furnaces. The PK 73 features the CellaTemp® PK series vitality indicator (SMART) for self-monitoring, analysis and reporting, enabling predictive maintenance by signalling optimal times for service and calibration based on operating data.

Special features:

• Measuring range 500 to 2,500 °C
• Compact design with narrow field of view
• Universally configurable switching outputs (2 x PNP)
• High optical resolution with precision lenses
• IO-Link interface (V1.1.3)
• Parameter setting via sensor pushbuttons or plant control interface
• Easy M30 central-thread mounting
• Large, bright 4-digit LED display

Technical data:
Measurement parameters
Measuring range: 500 - 2500 °C
Sensor: Thermopile
Spectral range: CO range (combustion gas measurement)
Response time t90: ≤ 60 ms
Measurement uncertainty: 1 % of temperature reading
Repeatability: 4 K
Temperature coefficient: 0.04 %/K
Resolution (current output): 0.1 K + 0.005 % of selected span
Resolution (interface): 0.1 K
Resolution (display): 1 K

Electrical parameters
Analog output: 0(4) - 20 mA, linear, switchable, scalable
Load resistance: ≤ 500 Ω
Switching outputs: 2 x PNP open collector, 24 V DC, 150 mA max each
Test input: 10 - 34 V DC (acc. IEC 61131-2)
Interface: IO-Link V1.1.3
Power supply: 18 - 32 V DC
Current consumption: ≤ 50 mA at 24 V DC

Features
Display: 4-digit red LED, digit height 8 mm
Status indicators: 3 x LED
Controls: 3 buttons

General parameters
Connection: M12 5-pin (A-coding)
Ambient temperature: 0 - 65 °C
Storage temperature: -20 - +80 °C
Permissible humidity: max. 95 % r.H. (non-condensing)
Dimensions: Ø 30 x 210 mm (without plug)
Housing: Stainless steel V2A (1.4305)
Protection class: IP65
Weight: approx. 0.4 kg

Adjustable parameters
Analog output scaling; emissivity quick adjustment; protective-glass transmission; damping time constant; max-value hold time; operating mode, source and switching point; on/off delays for outputs; temperature correction via interpolation points; vitality indicator settings; service parameters; factory reset; key lock; display content (temperature/"run"); temperature unit °C/°F; temperature simulation.

Functions
Overtemperature alarm (internal >75 °C); test function via button or test input; service simulation; diagnostic messages for reverse polarity, overload and incorrect supply voltage; reverse-polarity protection for power, analog and switching outputs.

Scope of delivery
Infrared thermometer CellaCombustion PK 73; short manual; 2 fixing nuts

Software
SW 50

Measuring field / optical data examples
Typical target diameter at focus distance 0.4 m: 7.00 mm (example PK 73 BF 1)
Measuring distance — Measuring field diameter examples:
0.00 mm — 18.20 mm
16.00 mm — 17.75 mm
32.00 mm — 17.30 mm
...
400.00 mm — 7.00 mm

Technical specifications:

• Measuring range: 500 - 2500 °C
• Sensor type: Thermopile
• Spectral sensitivity: CO range
• Response time: ≤ 60 ms
• Uncertainty: 1 % of reading
• Interface: IO-Link V1.1.3
• Analog output: 0(4) - 20 mA
• Switching outputs: 2 x PNP open collector
• Power supply: 18 - 32 V DC
• Display: 4-digit red LED
• Protection class: IP65
• Housing: Stainless steel V2A
• Dimensions: Ø 30 x 210 mm
• Weight: approx. 0.4 kg
