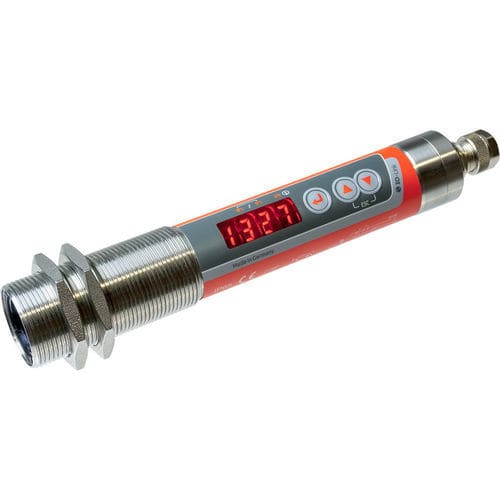

Infrared thermometer CellaCombustion PK 72

monochromaticwith LED display°C

Product description:
The CellaCombustion PK 72 performs non-contact temperature measurement at a wavelength where hot carbonaceous combustion gases exhibit high optical density and strong radiative properties. The instrument is designed to measure flue gas temperature in gas-fired boilers and small combustion systems, and is also suitable for larger combustion plants such as coal, biomass and waste incineration facilities. The CellaTemp® PK series includes a vitality indicator (SMART) for continuous self-monitoring, analysis and status reporting. The vitality monitor logs relevant operating data to support preventive maintenance and can autonomously signal optimal times for service checks and calibration depending on operating conditions.

Special features:

• Measuring range 400 to 2000 °C
• Small, compact design
• Universally configurable switching outputs
• High optical resolution with precision lenses
• IO‑Link interface
• All parameters adjustable via sensor pushbuttons or plant interface
• 2 × switching outputs, PNP open collector
• Very simple mounting via M30 central thread
• Large, high‑visibility LED display

Version / key product data:
Version: CellaCombustion PK 72 BF 1
Measuring range: 400 - 2000 °C
Target size: 7 mm
Focus distance: 0.4 m
Shape of the measuring field: round
Measuring principle: one‑colour

Technical Data (summary):

• Measuring range: 400 - 2000 °C
• Sensor: Thermopile
• Spectral range: CO2 range
• Response time t90: ≤ 60 ms
• Measurement uncertainty: 1 % of temperature reading [°C]
• Repeatability: 4 K
• Temperature coefficient: 0.04 %/K
• Resolution current output: 0.1 K + 0.005 % of selected measuring span
• Resolution interface: 0.1 K
• Resolution display: 1 K

Electrical parameters (summary):

• Analog output: 0(4) - 20 mA linear, switchable, scalable
• Resistance: ≤ 500 Ω
• Switching output: 2 × PNP Open Collector 24 V DC, 2 × 150 mA max.
• Test input: 10 - 34 V DC (acc. to IEC 61131‑2)
• Interface: IO‑Link V1.1.3
• Power supply: 18 - 32 V DC
• Current consumption: ≤ 50 mA at 24 V DC

Features (summary):

• Display: 4‑digit red LED, digit height 8 mm
• Status display: 3 × LED
• Control elements: 3 buttons

General parameters (summary):

• Connection: M12 threaded 5‑pin connection (A‑coding)
• Ambient temperature: 0 - 65 °C
• Storage temperature: -20 - +80 °C
• Permissible humidity: 95 % r.H. max. (non‑condensing)
• Dimension: Ø 30 × 210 mm (without plug)
• Housing: Stainless steel V2A (1.4305)
• Protection class: IP 65 acc. to DIN 40050
• Weight: approx. 0.4 kg

Adjustable parameters (examples):

• Analog output scaling 0/4 - 20 mA
• Emission (emissivity) quick adjustment
• Transmission of protective glass
• Damping time constant
• Hold time for maximum value memory
• Operating mode, source and switching point, switch‑on/off delays for switching contacts
• Temperature correction via interpolation points (X/Y pairs)
• Vitality indicator settings
• Service parameters, factory reset, key lock, display options, °C/°F, temperature simulation

Functions (summary):

• Overtemperature signal: indicator for internal temperature > 75 °C
• Test function via button or test input
• Service function: measured value simulation
• Diagnostic functions: reverse polarity, overload and incorrect supply voltage indication
• Reverse polarity protection for power supply, analog output and switching outputs

Scope of delivery:

• Infrared thermometer CellaCombustion PK
• Short manual
• 2 fixing nuts

Software:

• SW 50
