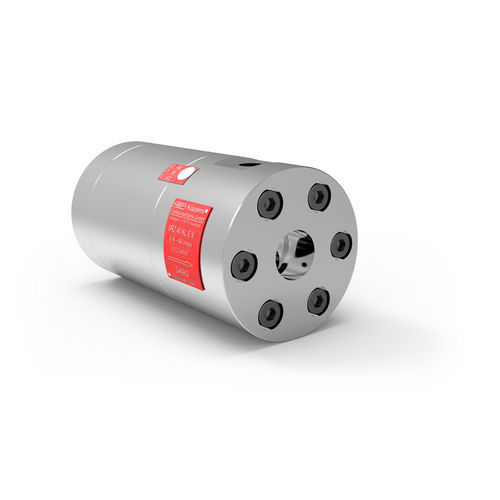

Positive displacement flow meter SRZ KLhelical screwgreasefor fuel
Add to favorites
Compare this product
Characteristics
- Technology
- positive displacement, helical screw
- Fluid
- for fuel, for high-viscosity liquids, grease, for refrigerant fluids
- Material
- stainless steel, PTFE
- Applications
- industrial, for hydraulic applications
- Volumetric flow rate
Max.: 400 l/min
(105.7 us gal/min)Min.: 0.4 l/min
(0.1 us gal/min)- Process temperature
Max.: 180 °C
(356 °F)Min.: -40 °C
(-40 °F)- Process pressure
315 bar
(4,568.69 psi)- Precision
0.1 %
- Repeatibility
0.05 %
Description
The series SRZ KL flowmeter (KL for ball bearing version) is a volume flow meter intended primarily for lubricating, non-abrasive fluid applications. Thanks to its concept, temperature fluctuations and the resulting change in the viscosity of the medium only marginally affect the measuring accuracy of the SRZ KL.
Functions & Specifications
Linearity
up to ±0.25 % of actual flow
Materials
Housing: as per DIN 1.4305 [AISI 303], 1.4404 [AISI 316L]
Helicals: as per DIN 1.4122
Bearing: Stainless steel ball bearing
Seals: FKM, PTFE (others on request)
