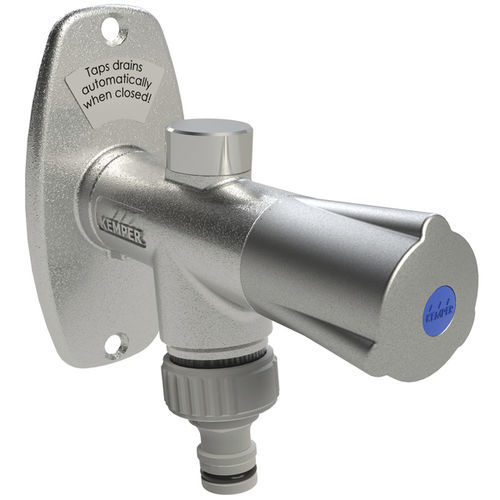

Valve faucet 5770901500

valve faucet
valve faucet
valve faucet
Add to favorites
Compare this product


Characteristics

Applications
for valves

Description

pre-assembled wetted metal parts made of dezincification-free and corrosion-resistant gunmetal (in closed position), resistant against aggressive water suitable for quick and easy installation in the frost-free areas inner top part for quick opening operation (two turns) high discharge capacity of 40 l / min (1 bar) maintenance-free EPDM spindle seal EPDM-seat gasket cone with internal CV spring integrated CV and tube aerator as a security combination HD inlet male pipe thread matt chrome-plated operating handle with blue identification plate free from dead spots incl. hose coupling for common connection systems fitting is not frost-proof! Standards and Approvals DVGW approval SVGW approval plastic parts with KTW and W 270 approval according to accepted materials list from German environmental agency soundproofing certification according to DIN EN ISO 3822 Class 1
